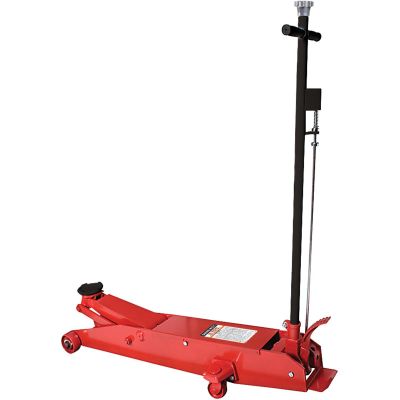

Sunex 5 Ton Floor Jack
Item ID:
SUN6604
Sunex 5 Ton Floor Jack
Features and Benefits:
- Uniweld constructed hydraulic assembly for increased strength and leak prevention
- Foot pump pedal for quickly raising the lift arm
- Locking lever on "T" handle locks handle in 3 different positions
- Release knob on top of handle operates independently of handle locking lever
- Safety by-pass and overload systems prevent over extending the ram and prevent jack from being used beyond its rated capacity
Flash chromed ram and pump piston inhibit rust. Full swivel ball bearing caster wheels with zerk grease fitting. Front wheels include roller bearings. Rear kick plate helps turn jack when in tight places.
Low Lift Height 5"
High Lift Height 22"
Overall Length 55.5"
Overall Width 17"
Overall Height At Pump 9.5"
Handle Length 45.75"
Saddle Diameter 5.75"
Net Weight 209.44 Lbs.
| UPC | 613364081150 |
|---|---|
| Weight | 209.000000 |
| Brand | Sunex |
| Net Weight | 209.44 lbs. |
| Front Caster Dimension | 2.5" |
| Jack Frame Material | Steel |
| Lifting Capacity | 5 ton |
| Maximum Raised Height | 22" |
| Minimum Low Height | 5" |
| Saddle Dimensions | 5.75" |
| Saddle Pad Material | Steel |
| Handle Length | 45.75" |
| Front Caster Material | Steel |
| Jack Lifting Range | 5"-22" |
| Number of Pumps Under Load | 6 pumps to load |
| Rear Caster Material | Steel |
| Release Type | Handle |
| Number of Pistons | Single Piston |
| Item | Service Jack |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
