Features and Benefits:

• Color: Black
• Capacity (lb.): 300 lb
• Anchor Hook Material: Steel
• Anchor Hook Type: Snap Hook
• Body Hook Type: Carabiner
• Average Arrest Force: 765 lbf (3.4kN)
• Class Type: B
• Gate Opening (in.): 0.75"
• Housing Material: Aluminum
• Leading Edge: Yes
• Leg Type: Single
• Length (ft.): 30'
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 54"
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 54"
• Minimum Fall Clearance - Non-Leading Edge application (ft.): 8.5'
• Minimum Fall Clearance - Leading Edge application (ft.): 13'
• Minimum set back distance from edge - Leading Edge application (in.): 20"
• Webbing/Cable Width (in.): 3/16"
• Certification: CSA Z259.2.2-98 Type 2|LE certified|OSHA|ANSI Z359.14-2014, Class B
• Lifeline Material: Galvanized Steel
• Rescue and Recover - SRL-R: No
• Special Features: Lightweight

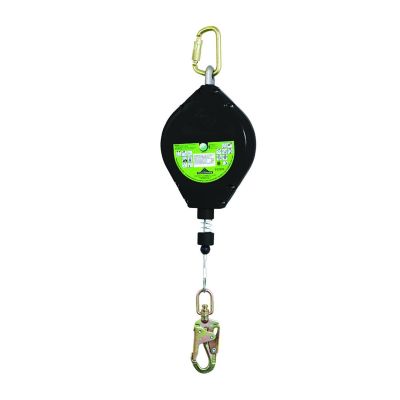

• SELF-RETRACTING DEVICE LE (SRD LE)�CLASS A�CABLE Single SRL-LE. SRL's that are Leading Edge certified can be used in both overhead and Leading-Edge applications. What is a Leading Edge? - A leading edge can be described as any sharp edge commonly found on a worksite, with which a cable or webbing connection could come into direct contact during a fall. There is considerable force at play during a fall, and a non-Leading-Edge SRL (cable or webbing) may cut or snap at a sharp edge during the fall
• Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge, for example when working over structural steel or in high-rise concrete buildings under construction with open flooring. An SRL Leading Edge (LE) device is an SRL that has enhanced design features for use in leading edge applications
• it provides additional protection against the sharp or abrasive surfaces found on many construction sites and can withstand a fall over a leading edge.
• Tested and approved for foot level tie-off.
• Carabiner hook included for attachment to the anchor point.
• Lightweight Aluminum housing. 3/16" (5mm) galvanized cable, 30 ft. working length. LE minimum fall clearance: 13 ft. (4m). Hook opening: 0.75” Snap Hook. Weight Capacity: 300 lbs.
• Maximum total arrest distance: 24 in. (0.61m) non leading-edge application. Average arrest force: 765 lbf (3.4kN). Minimum setback distance: 16 in. (0.4m). Certified to ANSI 2359.14 and CSA Z259.2.1.


At PeakWorks, we design and manufacture superior fall protection products that are easy to use andcomfortable to wear. Backed by leading industry experts, PeakWorks is dedicated to uncompromising quality to keep you working safely at any height. Tackle the job comfortably and confidently with PeakWorks innovative fall protection solutions.
