Features and Benefits:

• Color: Black
• Capacity (lb.): 300 lb
• Anchor Hook Material: Steel
• Anchor Hook Type: Snap Hook
• Body Hook Type: Carabiner
• Average Arrest Force: 765 lbf (3.4kN)
• Class Type: A
• Gate Opening (in.): 0.75"
• Housing Material: Composite Plastic
• Leading Edge: Yes
• Leg Type: Single
• Length (ft.): 10'
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24"
• Maximum Total Arrest Distance - Non-Leading Edge application (in.): 24"
• Minimum Fall Clearance - Non-Leading Edge application (ft.): 6'
• Minimum Fall Clearance - Leading Edge application (ft.): 13'
• Minimum set back distance from edge - Leading Edge application (in.): 16"
• Webbing/Cable Width (in.): 3/16"
• Certification: CSA Z259.2.2-98 Type 2|LE certified|ANSI Z359.14-2014, Class A
• Lifeline Material: Galvanized Steel
• Rescue and Recover - SRL-R: No
• Special Features: Lightweight

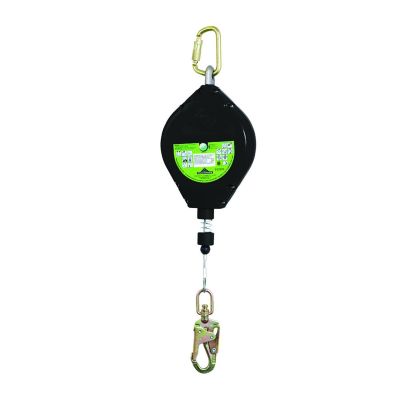

• SELF-RETRACTING DEVICE LE (SRD LE)�CLASS A�CABLE Single SRL-LE. SRL's that are Leading Edge certified can be used in both overhead and Leading-Edge applications. What is a Leading Edge? - A leading edge can be described as any sharp edge commonly found on a worksite, with which a cable or webbing connection could come into direct contact during a fall. There is considerable force at play during a fall, and a non-Leading-Edge SRL (cable or webbing) may cut or snap at a sharp edge during the fall
• Leading Edge (LE) self-retracting lifelines are designed to protect the worker when operating near an edge and where a fall hazard exists that could cause the lifeline to come into contact with the edge, for example when working over structural steel or in high-rise concrete buildings under construction with open flooring. An SRL Leading Edge (LE) device is an SRL that has enhanced design features for use in leading edge applications
• it provides additional protection against the sharp or abrasive surfaces found on many construction sites and can withstand a fall over a leading edge.
• Tested and approved for foot level tie-off.
• Carabiner hook included for attachment to the anchor point.
• Lightweight Aluminum housing. 3/16" (5mm) galvanized cable, 10 ft. (3m) working length. LE minimum fall clearance: 13 ft. (4m). Hook opening: 0.75” Snap Hook. Weight Capacity: 300 lbs.
• Maximum total arrest distance: 24 in. (0.61m) non-leading-edge application. Average arrest force: 765 lbf (3.4kN). Minimum setback distance: 16 in. (0.4m). Certified to ANSI 2359.14 and CSA Z259.2.1.
