Features and Benefits:

• 12 Volt Charging and Maintaining
• 4 x 2A output
• 4 independent channels
• Fully automatic, multi
• phase process
• Enhanced maintenance mode
• Charges multiple lead acid battery types
• Temperature compensation
• Small footprint and mountable design
• Includes (4) clamp output leads
• 10 ft ext cord (PLA62) and accessories available
• 1 Year Limited Warranty
• Operating Voltage : 12V
• Operational Mode : Automatic
• Charging Rate : 2A x 4 Channels
• Charging Phases : 7
• Enhanced Maintenance Mode : Yes
• Reverse Polarity Protection : Yes
• Battery Fault Detection : Yes
• Battery Recondition Mode : Yes
• Soft Start Mode : Yes
• Temperature Compensation : Yes
• Output Options : Clamp, Ring (optional)
• Output Cable Length (each Channel) : 72"
• Output Cable Gauge : 18 AWG
• Weight : 5.5 lbs.
• Warranty : 1 Year Limited
• UPC : 010271025015

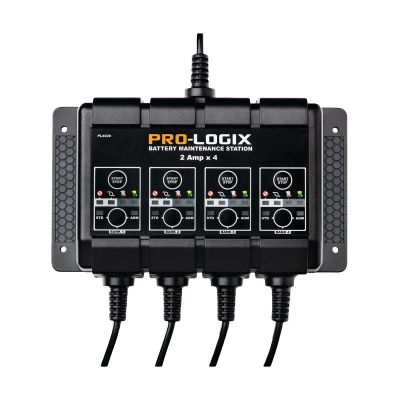

Model PL4020 is a perfect charger to meet the needs of mechanical repair shops, collision repair facilities, fleet operations, marinas and consumers. It features four independent output channels designed to properly charge a flooded or AGM (including Sprial Wound) battery. Because each output is independent of the others, a troublesome battery on one channel does not create problems for the other channels.It combines fully automatic operation with the ability to properly charge multiple battery types. Advanced charging logic, robust components, quick set-up and smart display feedback mean effective and efficient charging for your operation.
