Features and Benefits:

• Meets all 5 ASME PASE-2019 safety standards for service jacks.
• Reinforced Chassis, Caster Wings and Power Unit housing for true heavy duty lifting jobs
• Bypass Valves prevent overload and ram over-extension
• Enhanced release valve action for controlled lowering
• Front wheel configuration provides maximum load stability
• Large saddle diameter aides easier contact with vehicle lift point
• Multi-lingual Owner's Manual with training (operating) instructions
• Unique Product Specs:
• Capacity: 20-ton
• Lifting range: 7-1/2" to 23.8"
• Reach: 110.4"
• Saddle: 6-1/2" dia., steel crown
• Frame height: 10.2"
• Handle length: 47-1/2", 3-position spring-assisted locking
• Floor space: 18-1/8" x 61-3/8"
• Casters: 6; 4 front fixed, 2 mid-body swivel

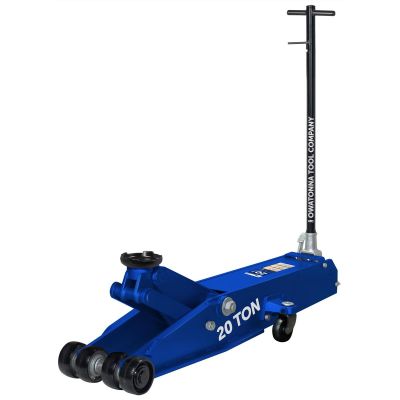

OTC�s HDJ20 is a 20-ton capacity service jack with a low-profile stance and extended height to add versatility. Large metal wheels and swivel casters roll effortlessly on internal bearings. Foot pedal for quick no load approach.Ideal size for safely lifting heavy duty vehicles, construction, fleet, and agricultural equipment, mass transit buses, loaded vocational vehicles and more. Cycle-tested design for a long life of professional duty. Meets all 5 ASME PASE-2019 safety standards for service jacks.Limited Lifetime Warranty
