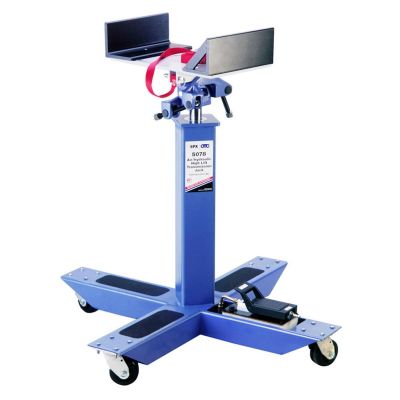

OTC 2,000 lb. Capacity High-Lift Transmission Jack for Trucks and Buses

Item ID: OTC5078
Free Item Included

OTC 2,000 lb. Capacity High-Lift Transmission Jack for Trucks and Buses

Item ID:
OTC5078
As low as
$1.00
OTC 2,000 lb. Capacity High-Lift Transmission Jack for Trucks and Buses

Features and Benefits:

  • Low height of 41-1/2" allows transmission to be rolled out from under vehicle's frame.
  • Foot-operated air pump enables the operator to effortlessly raise the transmission into place.
  • Rugged heavy wall tubing and oversized base for stability.
  • A dedicated adapter for Allison 500 and 600 series automatic transmission is included.
  • Made in the USA
  • Lifetime Warranty

  • OTC's Air-Assisted 2,000 pounds Capacity High-Lift Transmission Jack is designed for shops with in-ground or above-the-floor vehicle hoists. The low minimum height of 41-1/2 inches allows transmissions to be rolled out from under a bus or other vehicle's frame - avoiding a clearance problem faced by competitors' jacks. The metered, foot-operated air pump allows effortless lifting of the transmission into place, controlling the load precisely during removal and installation. The operation is twice as fast as competitive jacks powered by a hand pump, and it costs less. A dedicated adapter for the popular Allison 500 and 600 series automatic transmissions is included. Built in safety bypass prevents damage caused by a system overload. Covered by Lifetime Marathon Warranty. Value is at the core of the OTC tool and equipment portfolio. For a simple repair or the most complex drivability concern, these award-winning tools universally solve problems faster, and at better value, than any other product line available. Whether it�s a specialty tool or unique piece of service equipment, OTC provides top solutions to modern automotive service challenges while increasing technicians� productivity and shop profits.

Full Specifications
UPC 731413035296
Weight 314.000000
Brand OTC
Power Type Air/Hydraulic
Lifting Capacity 2000 lbs
Lifting Range 23.5"
Maximum Raised Height 65"
Minimum Closed Height 41.5"
Number stage Single Stage
Wheel Type Front Swivel
Wheel Type Rear Swivel
Wheel Size Front 4"
Wheel Size Rear 4"

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

Lifetime warranty does not cover abuse
