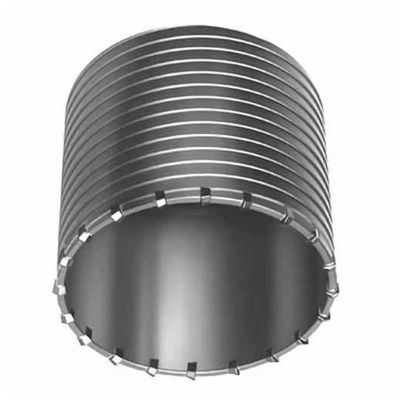

Milwaukee Tool SDS-MAX and SPLINE Thick Wall Carbide Tipped Core Bit 4"

Item ID: MLW48-20-5155
Free Item Included

Milwaukee Tool SDS-MAX and SPLINE Thick Wall Carbide Tipped Core Bit 4"

Item ID:
MLW48-20-5155
As low as
$1.00
Milwaukee Tool SDS-MAX and SPLINE Thick Wall Carbide Tipped Core Bit 4"

Features and Benefits:

  • 4" Diameter
  • Includes Core Body with Guide Plate & Centering Pin
  • Thick Wall Design
  • Usable Cuting Depth 4-1/16"
  • Use with 12" or 18" SPLINE Adapter Shanks (48-03-3564, 48-03-3565 ) and 12" or 18" SDS-MAX Adapter Shanks (48-03-3572, 48-03-3573)
  • Use With 7-1/2" Extension 48-95-6085
  • Use With Guide Plate 48-20-5174 and Centering Pin 48-20-5199

  • Milwaukee's core bits are ideal for large hole drilling where depth is relatively shallow. The core bit cuts a Kerf only. The usable depth of thick wall core bits is 4-3/8 in. The inside core must be removed by the operator before deeper drilling can be accomplished. The thick wall construction is ideal for larger hammers and more seasoned/cured concrete. A 7-1/2 in. extension is available to allow for the deeper holes to be drilled. The appropriate (Dependant on the diameter) spline drive shank must be used to drive the core bit. Use 48-20-5199 center pin and 48-20-5174 guide plate for positioning and starting the hole. Thick wall core bits are available from 1 in. to 6 in. diameters. See thin wall core bits for less expensive drilling in new concrete and/or smaller hammers.

Full Specifications
Weight 4.680000
Brand Milwaukee Tool
UPC 45242106158
