Milton Industries Filter 3/4" NPT Metal - 20 oz. Bowl
Item ID: MIL1022-10
Free Item Included
Compare Products
Milton Industries Filter 3/4" NPT Metal - 20 oz. Bowl
Item ID:
MIL1022-10
Milton Industries Filter 3/4" NPT Metal - 20 oz. Bowl
Features and Benefits:
- Maximum pressure of 250 pounds per square inch
- Maximum of 245 standard cubic feet per minute at 100 pounds per square inch
- Install upstream from regulators
- Temperature range of 40 degrees Fahrenheit to 160 degrees Fahrenheit

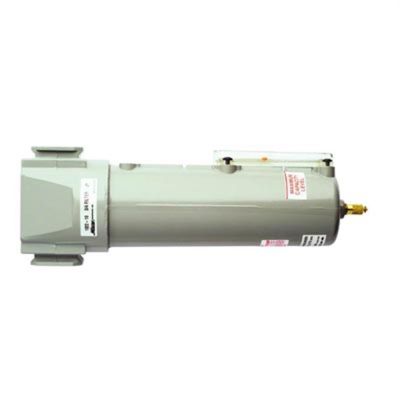

This 3/4" NPT Milton micro filter is supplied with pre-assembled automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included 3 stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 micron filter element which allows fewer pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high efficiency and long element life. The corrosion resistant metal bowl has a capacity of 20 ounces and is protected by a safety metal bowl guard. Maximum of 250 PSI and 245 SCFM.
| UPC | 030937307101 |
|---|---|
| Weight | 4.150000 |
| Brand | Milton Industries |
| Style | System |
| Air Inlet Size | 3/4 NPT |
| Drain Type | Automatic |
| Filter body Material | Bronze |
| Gauge Included | No Guage |
| Maximum Operating Temeprature | 40*-160* |
| Maximum Pressure in PSI | 250PSI |
| Number Of Outlets | 1 Outlet |
| Air Outlet Size | 3/4NPT |
| Bowl Capacity | 20.0 OZ |
| Bowl Material | Metal |
| Filtration micron size | 40 microns |
| Number Of Stages | Single Stage |
| Flow in CFM | 245 SCFM |
| Item | Air Filter |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
