Features and Benefits:

• Enables electrical safety testing of electric vehicle charging stations
• Universal 4mm jacks compatible with most US EVSE testing equipment
• Needs to be used with a multi-phase tester
• SAE J1772 Type 1 Connector
• Simulates Control Pilot Charging states A,B,C,D
• LED indicators of the different phases
• 130V Max input voltage
• Indicates Control Pilot Error, Phase-Earth error, and GFCI trip
• Rated CAT II 300V according to EN61010

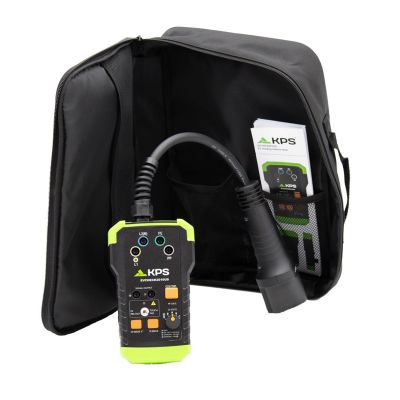

• Includes EVCHECK, carry bag, and user manual

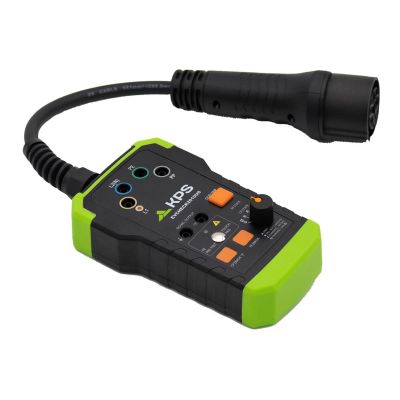

The EVCHECK2010US is a cutting-edge device designed to facilitate the electrical safety testing of electric vehicle charging stations across the United States. This testing tool is engineered with precision and boasts a SAE J1772 (Type 1) Connector with unviersal 4mm jacks, ensuring compatibility with a wide range of US Electric Vehicle Service Equipment (EVSE) testing equipment. With the ability to Simulate Control Pilot Charging States A, B, C, and D, the EVCHECK2010US provides a comprehensive solution for evaluating the performance and safety of electric vehicle charging infrastructure.Equipped with an LED Indicator on L1, this device visually represents power sent through the equipment. The EVCHECK2010US is designed with a maximum input voltage of 130V, providing a safe and reliable testing environment. Moreover, it can simulate a Control Pilot error, Phase-Earth error, and GFCI Trip error, ensuring that the safety functions of the EVSE are operating as intended. With a CAT II 300V rating according to EN61010 standards, the EVCHECK2010US prioritizes user safety during testing procedures. The built-in Phase-Earth Pre-Test touch point with a built-in indicator will illuminate if an unsafe P-E Fault is detected when touched, ensuring the user is not in danger of electric shock. This comprehensive package includes the EVCHECK unit, a convenient carry bag for portability, and a user manual for easy setup and operation, making it an essential tool for professionals involved in electric vehicle charging point safety assessments.
