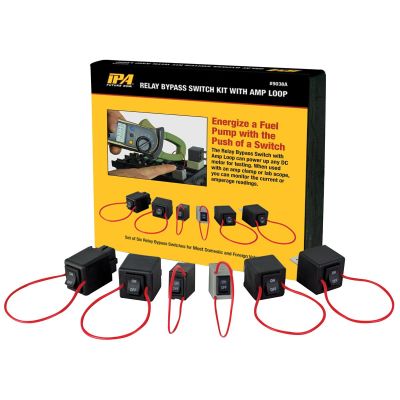

Innovative Products Of America Relay Bypass Switch Master Kit w/ Amp Loop

Item ID: IPA9038A
Free Item Included

Innovative Products Of America Relay Bypass Switch Master Kit w/ Amp Loop

Item ID:
IPA9038A
As low as
$1.00
Innovative Products Of America Relay Bypass Switch Master Kit w/ Amp Loop

Features and Benefits:

  • Controls relay circuit independent of "key on" systems
  • Use in conjunction with clamp-on Amp Probes and Lab Scopes
  • Run fuel pumps, fan motors, etc. with the push of a switch
  • Operating range: Up to 20 amp continuous, 30 amp surge (12V)
  • Covers most makes and models
  • The Relay Bypass Switch with Amp Loop can energize any relay powering a DC motor for testing. It also makes DC motor actuation and current monitoring easy. By attaching an Amp Clamp or Lab Scope, you can monitor the current or amperage readings, allowing the technician to judge the health of the electric motor. If a motor is drawing more current than specified, or if the current load is inconsistent during operation, the motor is suspect and should be replaced. Use the Relay Bypass to energize a DC motor, i.e., fuel pump, cooling fan, blower motor, window motor, or any motor actuated by a relay.The bypass feature of the Bypass Switch with Amp Loop simplifies fuel injection testing. To energize the fuel pump, install the Bypass Switch in place of the vehicle's fuel pump relay and simply push it to the “on in.; position. This eliminates the need for “key-on/key-off in.; systems.

Full Specifications
UPC 893509001582
Weight 0.400000
Brand Innovative Products Of America
Units per package 1
What Is the Item Relay Bypass Switch Master Kit w/ Amp Loop
What Tools Does It Fit clamp-on Amp Probes and Lab Scopes

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
