Features and Benefits:

ELECTRICAL TESTING (12/24 Volt Operation)

• Power lights: Manually, All-On, Auto Scan, or by Remote Control
• Audible and visual alerts: cross, open, overloaded and short circuit indication
• Pulsar® mode allows diagnostic repair
• Advanced trailer wiring diagnostics
• Amperage readout and range (0-20 amps)
• Cable testing
• Ground failure detection: differentiates between wire and chassis ground

ABS TESTING

• Access ABS blink codes
• Test ABS fault blink codes via Auxiliary and Brake Circuit activation (i.e. Meritor/Wabco, Bendix® TABS-6 and Haldex systems)

AIR BRAKE TESTING

• Performs leak down test on service and emergency lines
• Remote control allows observation of slackers to measure and adjust pushrods
• Real time, repetitive brake activation to find developing problems and verify leaking servo cans
• Features an internal air regulator

REMOTE CONTROL

• (3x) 3-button remote controls test all trailer electric circuitry and air brake actuation, 200+ ft. range
• Sync multiple (12) remotes to one unit

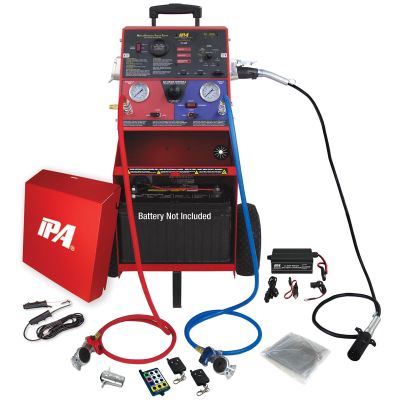

9008DL Includes:
(1) 12-Button Remote Control, (2x) 3-Button Remote Controls, 5' 7-Way Cable, Chassis Ground Cable, External Battery Connector, 8' Glad Hands, 10A Battery Charger, Face/Battery Shield and Rain Cover

Quickly troubleshoot lighting, air brake and ABS systems with the industry’s leading trailer tester. This intuitive and durable design is ideal for both on and off-site commercial trailer testing and repairs. The Super MUTT® Deluxe Trailer Tester is a Mobile Diagnostic Trailer Tester that places a load on the trailer’s electrical circuits to identify wiring problems while providing remote control operation over both air brakes and lights. Built to facilitate a one-man testing operation, the Super MUTT® reduces guesswork and inspection time to prevent failures that lead to expensive road calls and citations. The remote control allows for repetitive air brake actuation at each axle to reveal developing problems often missed by normal testing procedures. Battery not included.
