American Forge & Foundry AFF - Collision & Body Repair Kit - 10 Ton Capacity - 21 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY
Item ID: INT819SD
Free Item Included
Compare Products
American Forge & Foundry AFF - Collision & Body Repair Kit - 10 Ton Capacity - 21 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY
Item ID:
INT819SD
American Forge & Foundry AFF - Collision & Body Repair Kit - 10 Ton Capacity - 21 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY
Features and Benefits:
- Color: Red/Black
- Product Type: Body Repair Kit
- Ram Capacity (Tons): 20
- Ram Stroke (Inch): 5.00
- Ram Effective Area (Square Inch): 5.14
- Ram Oil Capacity (ml): 425
- Ram Collapsed Height (Closed) Inch: 11.1
- Ram Extended Height (Inch): 16
- Ram Outside Diameter of the Unit (Inch): 3.23
- Ram Diameter (Inch): 2.36
- Ram Saddle Diameter (Inch): 2.13
- Ram Optimal Pressure: 8,567 PSI
- Ram Weight (Lbs.): 20.28
- Hand Pump Rated Pressure (PSI): 8,567
- Hand Pump Output per Stroke (Ram Cylinder Extended Length Per Stroke) (Inch): 0.183
- Hand Pump Oil Capacity (ml): 800
- Hand Pump Optimal Force (Lbs.): 143.88-148.37
- Hand Pump Piston Stroke (Inch): 0.98
- Hand Pump Oil Output Thread: �” NPTF
- Hand Pump Weight (Lbs.): 14.12
- Kit Extension Lengths: 3”, 5”, 10”, 18”, 30”
- Hose: �”, 5�, Double Braided
- Standards: ASME/PASE 2019
- Warranty: 1 Year
- Contains all the tools necessary for pushing, spreading, and pressing of vehicle body panels, parts, frames, and assemblies. Snap-lock design for quick and easy assembly.
- Auto air bleed pump eliminates the need to bleed system prior to use.
- Automatic pump overload system protects against damage to rams and equipment.
- Heavy walled extensions stand up to the toughest of working applications that are interchangeable with other body and frame kits.
- Chrome plated pump core and piston rod for increased durability and long life.
- Long handle provides a very low pumping effort.
- Double braided hydraulic hose provides protection against abrasion and heavy wear.
- Includes metal case for easy transport and storage.

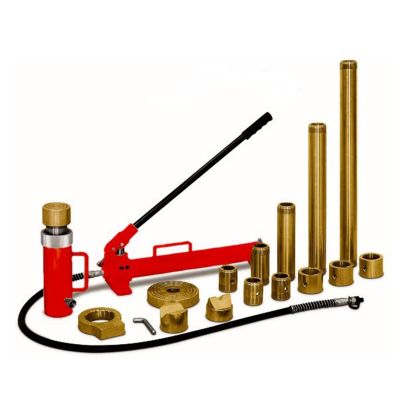

- Kit Includes: Hand Pump, Ram, Metal Case (Qty 2), Wrench, Base, Ram Toe, V-Base, Wedge Toe, Plunger Toe, Ram Coupler Set, 3” Extension Tube (Qty 3), 5” Extension Tube, 10” Extension Tube, 18” Extension Tube, 30” Extension Tube, Threaded Coupling (Qty 3).
Offering a wide assortment of Hydraulic Rams for use in high force applications including lifting, pulling, pushing, bending and alignment. Choose from complete kits or individual styles.
| Weight | 140.000000 |
|---|---|
| Brand | American Forge & Foundry |
| UPC | 874015007121 |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
