American Forge & Foundry AFF - Collision & Body Repair Kit - 10 Ton Capacity - 17 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

Item ID: INT817SD
Free Item Included

American Forge & Foundry AFF - Collision & Body Repair Kit - 10 Ton Capacity - 17 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

Item ID:
INT817SD
As low as
$1.00
American Forge & Foundry AFF - Collision & Body Repair Kit - 10 Ton Capacity - 17 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

Features and Benefits:

  • Color: Red/Black
  • Product Type: Body Repair Kit
  • Ram Capacity (Tons): 10
  • Ram Stroke (Inch): 5.25
  • Ram Effective Area (Square Inch): 2.46
  • Ram Oil Capacity (ml): 207
  • Ram Collapsed Height (Closed) Inch: 12.68
  • Ram Extended Height (Inch): 17.8
  • Ram Outside Diameter of the Unit (Inch): 2.16
  • Ram Diameter (Inch): 1.57
  • Ram Saddle Diameter (Inch): 1.3
  • Ram Optimal Pressure: 8,937 PSI
  • Ram Weight (Lbs.): 9.81
  • Hydraulic Spreader Capacity: � Ton
  • Hydraulic Spreader Length: 9.52”
  • Hydraulic Spreader Width: 2.28”
  • Hydraulic Spreader Stroke: 3.62”
  • Hydraulic Spreader Weight: 3.75 Lbs.
  • Hand Pump Rated Pressure (PSI): 8,937
  • Hand Pump Output per Stroke (Ram Cylinder Extended Length Per Stroke) (Inch): 0.381
  • Hand Pump Oil Capacity (ml): 650
  • Hand Pump Optimal Force (Lbs.): 148.88-148.37
  • Hand Pump Piston Stroke (Inch): 0.98
  • Hand Pump Oil Output Thread: �” NPTF
  • Hand Pump Weight (Lbs.): 14.11
  • Kit Extension Lengths: 4”, 10”, 18”, 27”
  • Hose: �”, 5�, Double Braided
  • ASME / PASE 2019 Safety Standards
  • Warranty: 1 Year
  • Contains all the tools necessary for pushing, spreading, and pressing of vehicle body panels, parts, frames, and assemblies. Snap-lock design for quick and easy assembly.
  • Auto air bleed pump eliminates the need to bleed system prior to use.
  • Automatic pump overload system protects against damage to rams and equipment.
  • Heavy walled extensions stand up to the toughest of working applications that are interchangeable with other body and frame kits.
  • Chrome plated pump core and piston rod for increased durability and long life.
  • Long handle provides a very low pumping effort.
  • Double braided hydraulic hose provides protection against abrasion and heavy wear.
  • 1/2-ton capacity hydraulic spreader features 2" jaws and spreads from 5/8" to 3-3/4".
  • Includes blow molded case for easy transport and storage.
  • Meets ASME PASE 2019 standards.

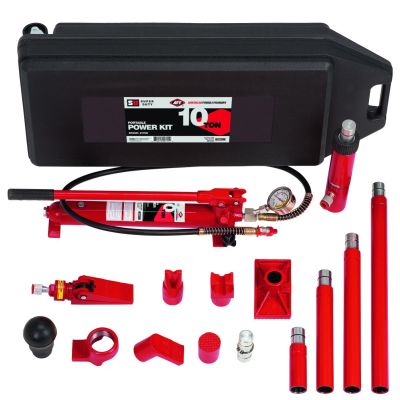

  • Kit Includes: Hand Pump, Ram, � Ton Hydraulic Spreader, Plastic Blow Mold Case, 4” Extension Tube, 10” Extension Tube, 18” Extension Tube, 27” Extension Tube, Ram Toe, Flat Saddle, Wedge Head, V Base, Male Connector, Rubber Saddle, Base, Ram and Hose Coupler Set, Pressure Gauge.

  • Offering a wide assortment of Hydraulic Rams for use in high force applications including lifting, pulling, pushing, bending and alignment. Choose from complete kits or individual styles.

Full Specifications
Weight 40.000000
Brand American Forge & Foundry
UPC 874015007114

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
