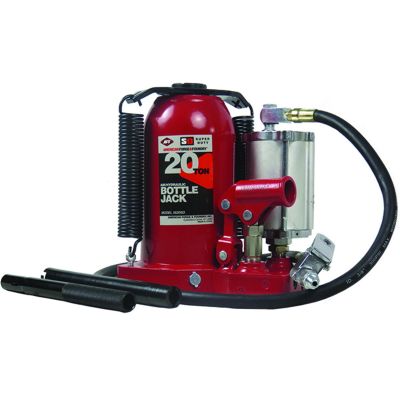

Features and Benefits:

• Color: Red/Black
• Product Type: Bottle Jack
• Capacity (T): 20 Ton
• Power Type: Hydraulic
• Operation Type: Air/Manual
• Minimum Height (in.): 10.3"
• Maximum Height (in.): 20.67"
• Ram Lift (in.): 6.12"
• Extension (in.): 4.25"
• Saddle Diameter: 1.8"
• Base Length (in.): 8.86"
• Base Width (in.): 5.72"
• Handle Length (in.): 16.5"
• Number of Handle Pieces: 2
• Oil Reservoir Assembly: Fully Welded - Collar & Base
• Base Type: Machined Steel
• Release Type: Cross Head Valve
• Working Air Pressure: 90-150 PSI
• Duty Level: Super Duty
• Weight (lb.): 40 Lbs.
• Certification: ASME/PASE 2019
• The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance. They are ideal for use in automotive, truck, farming, mining, and much more.
• Fully welded at top nut and base on oil reservoir for ultimate leak free usage
• Precision machined hardened 1 1/8” steel base for reliable strength.
• Made with centered pumps and rams with heat treated pistons
• Saddles are made of machine hardened steel for unsurpassed strength.
• Built-in bypass system prevents accidental overload and provides added operator safety.
• Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances
• Operating pressure at 90-180 PSI
• Aluminum air motor design delivers fast, consistent, and reliable operation.
• Dual cylinder return springs.
• Comes with carrying handle.


American Forge & Foundry�s Bottle Jacks include some of the most advanced features available today and provide countless solutions even in the toughest working conditions. Choose from our Heavy-Duty series for standard use or from our Super Duty series for more rigorous applications.
