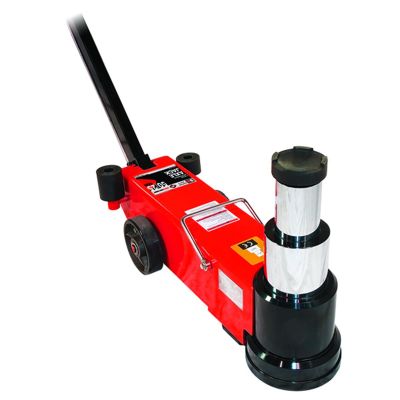

American Forge & Foundry AFF - Axle Jack - 2 Stage - 50/25 Ton Capacity - Air/Hydraulic - SUPER DUTY

Item ID: INT547SD
Free Item Included

American Forge & Foundry AFF - Axle Jack - 2 Stage - 50/25 Ton Capacity - Air/Hydraulic - SUPER DUTY

Item ID:
INT547SD
As low as
$1.00
American Forge & Foundry AFF - Axle Jack - 2 Stage - 50/25 Ton Capacity - Air/Hydraulic - SUPER DUTY

Features and Benefits:

  • Color: Red/Black
  • Capacity: 50/25 Tons
  • Product Type: Axle Jack
  • Stages: 2
  • Power Type: Hydraulic
  • Operation Type: Air Assist
  • Duty Level: Super Heavy Duty
  • Minimum Height (in.): 8.46"
  • Maximum Height without Extensions: 22.16"
  • Maximum Height with Extensions: 26.66"
  • Ram Lift (in.) - Stage 1: 4.61"
  • Ram Lift (in.) - Stage 2: 9.09"
  • Ram Lift (in.) - Stage 3: N/A
  • Capacity (T) - Stage 1: 50 Tons
  • Capacity (T) - Stage 2: 25 Tons
  • Capacity (T) - Stage 3: N/A
  • Handle Length (in.): 54"
  • Number of Handle Pieces: 1
  • Handle Locking Positions: 90°/45°/180°
  • Chassis Length (in.): 32"
  • Chassis Width (in.): 16"
  • Saddle Diameter: 4"
  • Number of Extensions: 2
  • Extension Sizes (in.): 1.75" & 3"
  • Extension Screw: N/A
  • Wheel Diameter (in.): 8"
  • Working Air Pressure: 116 - 174 PSI
  • Weight: 165 Lbs.
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019
  • Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
  • SUPER HEAVY DUTY, 2 Stage 50 Ton and 25 Ton built tough for the rigors of the Heavy-Duty Trucking, Agricultural and Fleet business.
  • The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal, giving this jack a much better hold under severe load conditions.
  • The extra-long 54” handle can be locked in 3 positions for easy positioning of this jack in hard-to-reach places.
  • Single piece base construction provides superior strength for increased load stability.
  • Comes with 2 extensions (3”, 1.75”) and saddle adapter.
  • Integral Descent Metering maintains a controlled and safe lowering of the load.
  • Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring.
  • Air assisted lowering speeds up ram retraction.
  • Built in overload safety valve prevents damage to unit due to excessive load.
Full Specifications
Weight 170.000000
Brand American Forge & Foundry
UPC 874015003413
