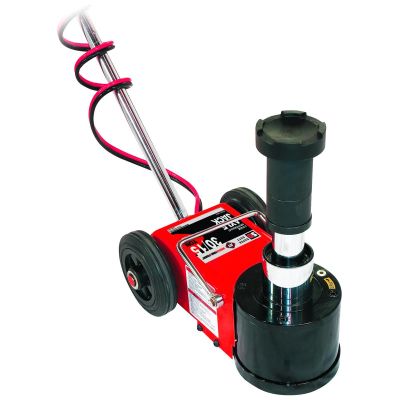

American Forge & Foundry AFF - Axle Jack - 2 Stage - 30/15 Ton Capacity - Air/Hydraulic - SUPER DUTY

Item ID: INT545SD
Free Item Included

American Forge & Foundry AFF - Axle Jack - 2 Stage - 30/15 Ton Capacity - Air/Hydraulic - SUPER DUTY

Item ID:
INT545SD
As low as
$1.00
American Forge & Foundry AFF - Axle Jack - 2 Stage - 30/15 Ton Capacity - Air/Hydraulic - SUPER DUTY

Features and Benefits:

  • Color: Red/Black
  • Capacity: 30/15 Tons
  • Product Type: Axle Jack
  • Stages: 2
  • Power Type: Hydraulic
  • Operation Type: Air Assist
  • Duty Level: Super Heavy Duty
  • Minimum Height (in.): 5.92"
  • Maximum Height without Extensions: 11.42"
  • Maximum Height with Extensions: 16.17"
  • Ram Lift (in.) - Stage 1: 2.91"
  • Ram Lift (in.) - Stage 2: 5.59"
  • Ram Lift (in.) - Stage 3: N/A
  • Capacity (T) - Stage 1: 30 Tons
  • Capacity (T) - Stage 2: 15 Tons
  • Capacity (T) - Stage 3: N/A
  • Handle Length (in.): 54"
  • Number of Handle Pieces: 1
  • Handle Locking Positions: 90°/45°/180°
  • Chassis Length (in.): 20"
  • Chassis Width (in.): 16"
  • Saddle Diameter: 4"
  • Number of Extensions: 2
  • Extension Sizes (in.): 1.75" & 3"
  • Extension Screw: N/A
  • Wheel Diameter (in.): 8"
  • Working Air Pressure: 116 - 174 PSI
  • Weight: 77 Lbs.
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019
  • Special Features: Air Return|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
  • SUPER HEAVY DUTY, 2 Stage 30 Ton and 15 Ton built tough for the rigors of the Heavy-Duty Trucking, Agricultural and Fleet business.
  • An integral Descent Metering Valve maintains a controlled and safe lowering of the load
  • The piston head seal design is borrowed from Industrial technology providing a superior low- and high-pressure seal, giving this jack a much better hold under severe load conditions
  • Double polished chromed pistons allow for much tighter tolerances which reduces oil bypassing and reduced ram scoring.
  • Built in overload safety valve prevents damage to unit due to excessive load.
  • The extra light weight and portability makes this the ideal service jack for Service Vehicles.
  • 2 Stages and lifting capacities of 30 and 15 Ton make this a very versatile jack.
  • The extra-long removable handle and rugged rear wheels make for easy positioning in hard-to-reach places.
  • Comes with 2 extensions (3", 1.75") and saddle adapter.
  • Air assisted lowering speeds up ram retraction.
  • Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under the harshest conditions.
  • Low height makes this one of the lowest operating heavy jacks on the market.
  • Ideally suited for drop axles and other low clearance jobs.
Full Specifications
Weight 77.000000
Brand American Forge & Foundry
UPC 874015003390
