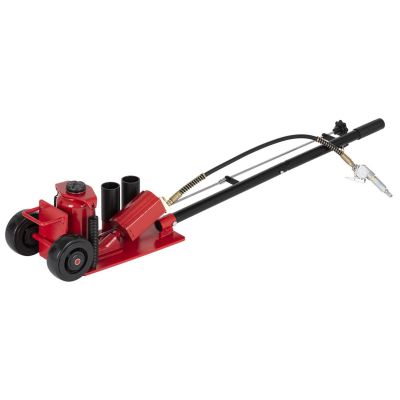

American Forge & Foundry AFF - Axle Jack - 20 Ton Capacity - Spring Return - Air/Hydraulic

Item ID: INT520
Free Item Included

American Forge & Foundry AFF - Axle Jack - 20 Ton Capacity - Spring Return - Air/Hydraulic

Item ID:
INT520
As low as
$1.00
American Forge & Foundry AFF - Axle Jack - 20 Ton Capacity - Spring Return - Air/Hydraulic

Features and Benefits:

  • Color: Red/Black
  • Capacity: 20 Tons
  • Product Type: Axle Jack
  • Stages: 1
  • Power Type: Hydraulic
  • Operation Type: Air Assist
  • Duty Level: Heavy Duty
  • Minimum Height (in.): 8.66"
  • Maximum Height without Extensions: 12.6"
  • Maximum Height with Extensions: 23.5"
  • Ram Lift (in.) - Stage 1: 3.94"
  • Ram Lift (in.) - Stage 2: N/A
  • Ram Lift (in.) - Stage 3: N/A
  • Capacity (T) - Stage 1: 20 Tons
  • Capacity (T) - Stage 2: N/A
  • Capacity (T) - Stage 3: N/A
  • Handle Length (in.): 35.5"
  • Number of Handle Pieces: 1
  • Handle Locking Positions: N/A
  • Chassis Length (in.): 17.8"
  • Chassis Width (in.): 8.9"
  • Saddle Diameter: 2"
  • Number of Extensions: 2
  • Extension Sizes (in.): 4" & 4"
  • Extension Screw: 2.78"
  • Wheel Diameter (in.): 5"
  • Working Air Pressure: 90-180 PSI
  • Weight: 50 Lbs.
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019
  • Special Features: Lightweight|Dual Return Springs|High Speed Air Motor|Overload BypassAmerican Forge & Foundry�s Axle Jacks are engineered to withstand the extreme conditions of all heavy-duty applications including roadside service, fleet maintenance, agriculture, military sectors, and much more.
  • Ideal for lifting trucks, trailers, tractors, and any other heavy-duty equipment.
  • Lightweight design is ideal for mobile service repair.
  • Spring driven self-retracting ram eliminates manual lowering of ram.
  • Oil resistant polyurethane wrapped wheels provide increased mobility around the shop floor.
  • Fast, efficient air motor reduces time to lift the load.
  • Narrow chassis design fits easily between tandem wheels.
  • Overload and bypass safety valves prevent the jack from being used beyond its rated capacity.
  • Meets ASME PASE 2019 Safety Standards

  • � Color: Red/Black� Capacity: 20 Tons� Product Type: Axle Jack� Stages: 1� Power Type: Hydraulic� Operation Type: Air Assist� Duty Level: Heavy Duty� Minimum Height (in.): 8.66"� Maximum Height without Extensions: 12.6"� Maximum Height with Extensions: 23.5"� Ram Lift (in.) - Stage 1: 3.94"� Ram Lift (in.) - Stage 2: N/A� Ram Lift (in.) - Stage 3: N/A� Capacity (T) - Stage 1: 20 Tons� Capacity (T) - Stage 2: N/A� Capacity (T) - Stage 3: N/A� Handle Length (in.): 35.5"� Number of Handle Pieces: 1� Handle Locking Positions: N/A� Chassis Length (in.): 17.8"� Chassis Width (in.): 8.9"� Saddle Diameter: 2"� Number of Extensions: 2� Extension Sizes (in.): 4" & 4"� Extension Screw: 2.78"� Wheel Diameter (in.): 5"� Working Air Pressure: 90-180 PSI� Weight: 50 Lbs.� Warranty: 1 Year� Certification: ASME/PASE 2019� Special Features: Lightweight|Dual Return Springs|High Speed Air Motor|Overload Bypass

Full Specifications
Weight 44.000000
Brand American Forge & Foundry

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
