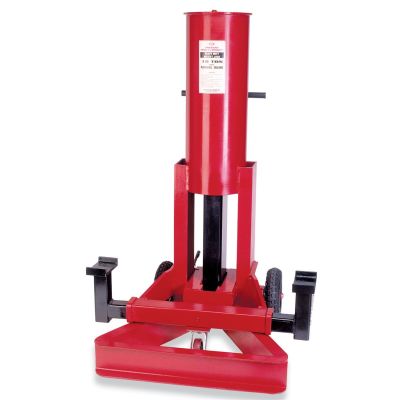

American Forge & Foundry AFF - End Lift - 10 Ton Capacity - Air Operated

Item ID: INT3598
Free Item Included

American Forge & Foundry AFF - End Lift - 10 Ton Capacity - Air Operated

Item ID:
INT3598
As low as
$1.00
American Forge & Foundry AFF - End Lift - 10 Ton Capacity - Air Operated

Features and Benefits:

  • Color: Red/Black
  • Capacity: 10 Ton
  • Product Type: Air Lift Jack
  • Power Type: Air
  • Operation: Air Valve
  • Minimum Height: 12.4"
  • Maximum Height: 49.6"
  • Chassis Length (in.): 35.5"
  • Chassis Width: 47.3"
  • Reach (in.): 50.6
  • Lift: 37.2"
  • Saddle Diameter: 4" x 6"
  • Saddle Spread (in.): 36" - 50"
  • Handle Length (in.): 18.9"
  • Working Air Pressure: 200 PSI
  • Weight: 682 Lbs.
  • Wheels: Qty 2 - 8" Pneumatic Wheels, Qty 1 - Front Swivel Caster
  • Certification: ASME/PASE 2019
  • Warranty: 1 Year
  • Adapters Included: Qty2 - 4" x 6" Saddles
  • Special Features: 3 Way Air Valve| Automatic Safety Lock
  • The AFF Air End Lift is designed with an extra-wide stance to lift the entire front or rear of large trucks, buses, industrial, heavy-duty construction equipment, and large farm vehicles.
  • 10-Ton capacity achieved at 200-PSI air supply.
  • Three-way air valve for fine lifting and lowering control.
  • 4" x 6" steel saddles adjust between 36" and 50" widths.
  • Saddle arms reversible for low height loads.
  • 13" Forward reach (distance from cylinder to saddles).
  • Automatic mechanical safety lock engages at five lift heights from 17-1/2" to 50".
  • Two air control valve fittings ‐ one for shop air supply and one for a Schrader valve.
  • Front swivel caster and two pneumatic rear tires for easy maneuverability.

  • American Forge & Foundry features a wide range of specialty jacks for the trucking, agriculture, fleet, and military sectors. Each is designed for applications where extra capacity, added reach, or height may be required.

Full Specifications
UPC 874015000719
Weight 725.000000
Brand American Forge & Foundry
Net Weight 750 lb
Front Caster Material Rubber
Jack Frame Material Steel
Jack Lifting Range 37 1/2"
Maximum Raised Height 50"
Release Type Valve
Saddle Dimensions 4" X 6"
Saddle Pad Material Steel
Number of Pistons Single Piston
Front Caster Dimension 6"
Lifting Capacity 10 Ton
Minimum Low Height 12.5"
Number of Pumps Under Load 200psi

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

Call vendor for warranty
