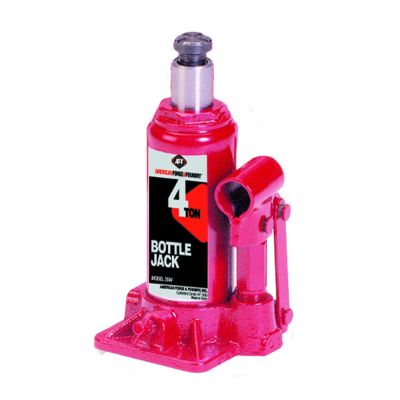

American Forge & Foundry AFF - Bottle Jack - 4 Ton Capacity - Manual - Heavy Duty

Item ID: INT3504
Free Item Included

American Forge & Foundry AFF - Bottle Jack - 4 Ton Capacity - Manual - Heavy Duty

Item ID:
INT3504
As low as
$1.00
American Forge & Foundry AFF - Bottle Jack - 4 Ton Capacity - Manual - Heavy Duty

Features and Benefits:

  • Color: Red/Black
  • Product Type: Bottle Jack
  • Capacity (T): 4 Ton
  • Power Type: Hydraulic
  • Operation Type: Manual
  • Minimum Height (in.): 6.75"
  • Maximum Height (in.): 12.25"
  • Ram Lift (in.): 3.25"
  • Extension (in.): 2.25"
  • Saddle Diameter: 1"
  • Base Length (in.): 4"
  • Base Width (in.): 4.5"
  • Handle Length (in.): 11.1"
  • Number of Handle Pieces: 2
  • Oil Reservoir Assembly: Crush Fit
  • Base Type: Drop Forge
  • Release Type: Cross Head Valve
  • Working Air Pressure: N/A
  • Duty Level: Heavy Duty
  • Weight (lb.): 9 Lbs.
  • Certification: ASME/PASE 2019
  • The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance. They are ideal for use in automotive, truck, farming, mining, and much more.
  • Drop forged alloy steel construction for reliable strength.
  • Made with centered pumps and rams with heat treated pistons
  • Saddles are made of machine hardened steel for unsurpassed strength.
  • Built-in bypass system prevents accidental overload and provides added operator safety.
  • Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances.
  • Crush Fit Assembly on oil reservoir.

  • American Forge & Foundry�s Bottle Jacks include some of the most advanced features available today and provide countless solutions even in the toughest working conditions. Choose from our Heavy-Duty series for standard use or from our Super Duty series for more rigorous applications.

Full Specifications
UPC 874015003307
Weight 6.700000
Brand American Forge & Foundry
Power Type hydraulic
Lifting Capacity 4 ton
Maximum Height 13-1/4"
Minimum Height 6-1/2"
Wheels No Wheels
Item Bottle Jack

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
