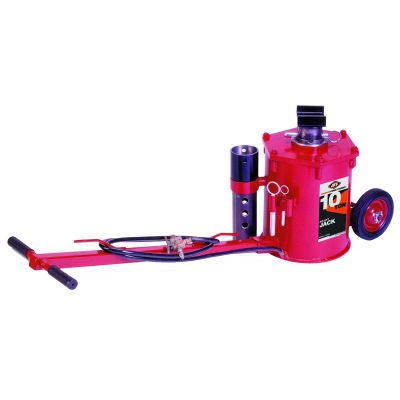

American Forge & Foundry AFF - Air Lift Jack - 10 Ton Capacity

Item ID: INT3400A
Free Item Included

American Forge & Foundry AFF - Air Lift Jack - 10 Ton Capacity

Item ID:
INT3400A
As low as
$1.00
American Forge & Foundry AFF - Air Lift Jack - 10 Ton Capacity

Features and Benefits:

  • Color: Red/Black
  • Capacity: 10 Ton
  • Product Type: Air Lift Jack
  • Power Type: Air
  • Operation: Air Valve
  • Minimum Height: 17.3"
  • Maximum Height: 51.2"
  • Chassis Length (in.): 12.75"
  • Chassis Width: 12.75"
  • Reach (in.): N/A
  • Lift: 12.4"
  • Saddle Diameter: 5" x 4"
  • Saddle Spread (in.): N/A, Fixed
  • Handle Length (in.): 38.5"
  • Working Air Pressure: 200 PSI
  • Weight: 172 Lbs.
  • Wheels: Qty 2 - 8" Rubber Wheels
  • Certification: ASME/PASE 2019
  • Warranty: 1 Year
  • Adapters Included: Qty 2 - Extensions, Saddle
  • Special Features: 3 Way Air Valve| Automatic Safety Lock
  • This Air Lift Jack is designed for lifting and supporting trailers, large trucks, buses, farm, industrial, and construction equipment.
  • 10-ton capacity achieved at 200-PSI air supply.
  • Low height 18" to high height with all extensions used 52".
  • Heavy-duty air valve offers accurate lift control.
  • Removable "T" handle for easy storage.
  • Extension tubes offer multiple lifting and locking positions.
  • 12" Lift travel.
  • Large diameter rubber tread wheels.

  • American Forge & Foundry features a wide range of specialty jacks for the trucking, agriculture, fleet, and military sectors. Each is designed for applications where extra capacity, added reach, or height may be required.

Full Specifications
UPC 874015000498
Weight 162.000000
Brand American Forge & Foundry
Net Weight 172 lb
Front Caster Dimension 6"
Jack Frame Material Steel
Lifting Capacity 10 Ton
Maximum Raised Height 52"
Minimum Low Height 18"
Saddle Pad Material Steel
Handle Length 36"
Front Caster Material Rubber
Jack Lifting Range 34"
Number of Pumps Under Load 200psi
Release Type Lever
Number of Pistons Single Piston
Item Air Jack

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
