Features and Benefits:

• Color: Red/Black
• Capacity: 20 Ton
• Minimum Height: 7.2"
• Maximum Height: 26.37"
• Power Type: Air/Hydraulic
• Operation Type: Air/Manual/Foot Pedal
• Quick Lift Feature: Oversized Pump Piston for More Flow
• Working Air Motor Pressure: 115-200 PSI
• Release Assembly: U-Joint
• Chassis Type: Long Chassis Service Jack
• Chassis Length (in.): 66"
• Chassis Width (in.): 13.80"
• Handle Type: T-Handle
• Handle Length (in.): 46"
• Handle Type (Pcs): 1
• Saddle Size: 5.7"
• Includes Saddle Pad: No
• Saddle Pad Material: N/A
• Handle Bump Protector: No
• Rear Casters: Qty 2
• Front Wheels: Qty 2
• Hydraulic Return Spring: Yes
• Overload Bypass Valve: Yes
• Handle Return Spring: No
• Handle Docking Position: 90°
• Handle Locking Positions: 90°/45°/180°
• Service Parts Available: Yes
• Duty Level: Super Duty
• Weight (lb.): 562 Lbs.
• Warranty: 1 Year
• Certification: ASME/PASE 2019
• Ideal for truck tire and repair shops, fleet service, maintenance shops, military bases, and job sites.
• Heavy duty pumps, rams, and cylinders are precision machined and inspected to ensure long service life and superior performance.
• Super long 66" body for easier lifting of vehicles with long overhangs.
• Handle mounted locking control lever locks handle in one of three positions: vertical, 45 degrees, or horizontal.
• Foot operated pump for quick lifting efficiency. Built with an automatic overload safety valve. Air motor on designed for use with compressed air system between 90-120 PSI for convenient lifting.

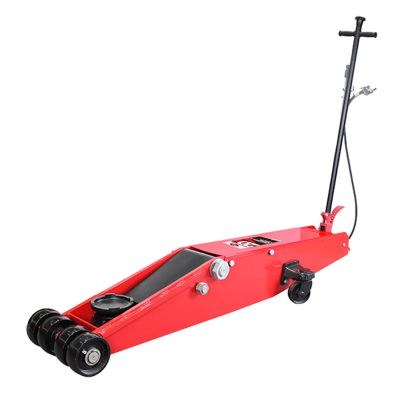

Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.
