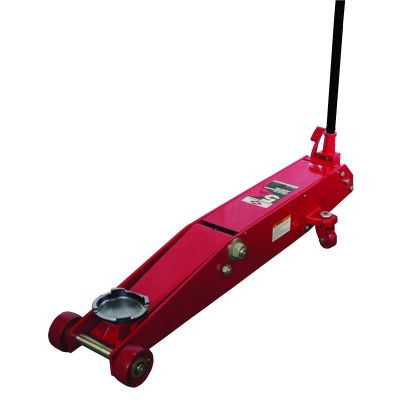

American Forge & Foundry AFF - Service Jack - 5 Ton Capacity - Long Chassis - Manual - 6" Min H to 22.5" Max H - Heavy Duty

Item ID: INT3120
Free Item Included

American Forge & Foundry AFF - Service Jack - 5 Ton Capacity - Long Chassis - Manual - 6" Min H to 22.5" Max H - Heavy Duty

Item ID:
INT3120
As low as
$1.00
American Forge & Foundry AFF - Service Jack - 5 Ton Capacity - Long Chassis - Manual - 6" Min H to 22.5" Max H - Heavy Duty

Features and Benefits:

  • Color: Red/Black
  • Capacity: 5 Ton
  • Minimum Height: 6"
  • Maximum Height: 22.5"
  • Power Type: Hydraulic
  • Operation Type: Manual/Foot Pedal
  • Quick Lift Feature: Oversized Pump Piston for More Flow
  • Working Air Motor Pressure: N/A
  • Release Assembly: U-Joint
  • Chassis Type: Long Chassis Service Jack
  • Chassis Length (in.): 56"
  • Chassis Width (in.): 11.8"
  • Handle Type: T-Handle
  • Handle Length (in.): 39.7"
  • Handle Type (Pcs): 1
  • Saddle Size: 5.5"
  • Includes Saddle Pad: No
  • Saddle Pad Material: N/A
  • Handle Bump Protector: No
  • Rear Casters: Qty 2
  • Front Wheels: Qty 2
  • Hydraulic Return Spring: Yes
  • Overload Bypass Valve: Yes
  • Handle Return Spring: No
  • Handle Docking Position: 90°
  • Handle Locking Positions: 90°/45°/180°
  • Service Parts Available: Yes
  • Duty Level: Heavy Duty
  • Weight (lb.): 254 Lbs.
  • Warranty: 1 Year
  • Certification: ASME/PASE 2019
  • Long 56" body for easier lifting of vehicle with long overhangs.
  • Foot-operated pump for quick lifting efficiency. A handle-mounted control lever to lock handle in 1 of 3 positions.
  • Automatic overload safety valves.
  • Swivel casters for ease of maneuverability in tight shop situations. Large, rugged 4-1/2" front wheels and 2-3/4" rear casters.
  • Designed for heavy-duty lifting applications (such as bus and truck fleets, agricultural, industrial, and heavy construction equipment) requiring access to very low hard-to-reach areas.

  • Designed with the professional service technician in mind, AFF service jacks are built to withstand the rigors of everyday use and are among the most durable in the industry today. Heavy gauge steel, UV powder coated paint, upgraded seals and overload protection are just some of the features that make AFF service jacks stand out in the shop.

Full Specifications
UPC 874015000139
Weight 253.000000
Brand American Forge & Foundry
Net Weight 240 lbs.
Front Caster Dimension 4"
Jack Frame Material Steel
Lifting Capacity 5 ton
Maximum Raised Height 22-1/2"
Minimum Low Height 6"
Rear Caster Dimension 4"
Saddle Dimensions 6-1/2"
Saddle Pad Material Steel
Handle Length N/A
Front Caster Material Steel
Jack Lifting Range 16-1/2"
Number of Pumps Under Load foot pedal control
Rear Caster Material Steel
Release Type handle mounted
Number of Pistons Single Piston
Item INT3120
