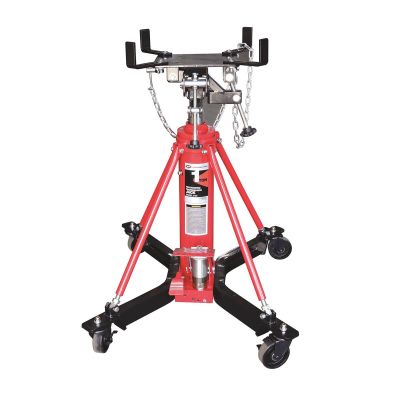

American Forge & Foundry AFF - Transmission Jack - Hydraulic - Telescopic - Two Stage - 2,000 Lbs. Capacity - 37" Min H to 76" High H - Manual Foot Pedal - Double Pump Quick Lift
Item ID: INT3102
Free Item Included
Compare Products
American Forge & Foundry AFF - Transmission Jack - Hydraulic - Telescopic - Two Stage - 2,000 Lbs. Capacity - 37" Min H to 76" High H - Manual Foot Pedal - Double Pump Quick Lift
Item ID:
INT3102
American Forge & Foundry AFF - Transmission Jack - Hydraulic - Telescopic - Two Stage - 2,000 Lbs. Capacity - 37" Min H to 76" High H - Manual Foot Pedal - Double Pump Quick Lift
Features and Benefits:
- Color: Red/Black
- Unit Type: Telescopic Transmission Jack
- Power Type: Hydraulic
- Operation Type: Manual
- Ram Stages: 2
- Capacity: 1 Ton
- Minimum Height: 37"
- Maximum Height: 76"
- Front Tilt: 28°
- Rear Tilt: 49°
- Head Width: 8” x 8” to 14” x 14”
- Base Width: 28” x 32”
- Working Air Pressure: N/A
- Warranty: 1 Year
- Weight: 183 Lbs.
- Certification: ASME/Pase 2019
- Two stage telescopic ram designed for medium duty transmissions, transfer cases, and differentials.
- Double pump hydraulic system for quick lift operation.
- Powder coat finish provides resistance to corrosion, chemicals, and scratches.
- Chrome plated pump core and piston rod reduces friction and provides long service life.
- Adjustable saddle with corner bracket and safety chain.
American Forge & Foundry�s Transmission Jacks provide the service technician the capability for “one-man” removal and installation of bulk transmissions, differentials, transfer cases, fuel tanks, and more. AFF offers telescoping, low profile, and high lift styles in both manual hydraulic and air assist.
| Weight | 150.000000 |
|---|---|
| Brand | American Forge & Foundry |
| UPC | 874015006254 |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
