Features and Benefits:

• Fluid inlet: 1/4 in. NPT (F) swivel
• Fluid outlet: 1/4 in. NPT (F) swivel
• Outlet thread: 1/4 in. NPT (M) for 3/8 in. ID hoses
• Wetted materials: Plated steel, hardened steel, and Polyethylene

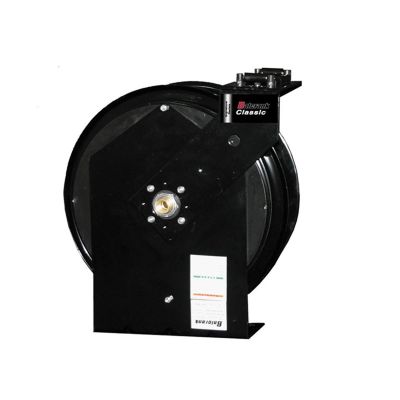

Balcrank Signature Series Open Hose Reel for grease comes with 50' of 1/4" high pressure (5000 PSI) hose, with an outlet thread of 1/4 NPT(M). A ball stop is also included, but, if an inlet hose is required, part 8332-002 must be ordered separately. Reel measures 16L x 8W x 17.5H overall. Balcrank's Signature Series Hose Reels are dependable, built to last, and easy to install, featuring heavy-gauge parts and an eight-position-locking, precision die-cast latch mechanism. With a compact design to fit in small spaces, the reel's specifically-configured bracket allows for easy installation, while the five-position outlet arm allows for ceiling, wall, or tank-top mounting.
