Features and Benefits:

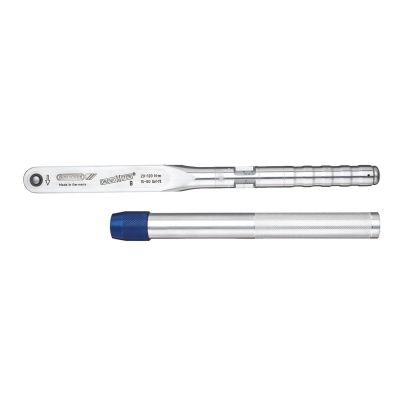

• INDUSTRIAL TORQUE WRENCH made completely from Aluminum
• the last wrench you will ever buy
• Adjustable from 25 to 120 Nm
• Features:�� Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy:+/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.�� 1/2" square drive with ball locking device DIN 3120 - A 12.5, ISO 1174�� Automatic short-path actuation with tactile impulse and audible signal�� Dual scale with a scale graduation of 5 N�m and 5 lbf�ft�� With push-button release�� Lightweight and robust (as housing is made of an aluminium alloy), veryworkshop-friendly�� No inaccuracies whether used with both hands or held away from the handle(as for standard torque wrenches). Both the square drive and fulcrum are onan axis which ensures a high degree of user safety
• can be extended to reducethe user's working load.�� Extremely low wear attributable to reduced forces in a unique lever mechanism�� Forged lever chain from our own quality forge�� Maximum precision even when subjected to extreme continuous use�� Long life cycles and tool lives�� Easy operation - fast and safe torque tightening�� Easy adjustment thanks to attractive adjusting button secured against loss atthe end of the handle�� Single- and double-square drive for controlled bi-directional tightening


Calibration length: 373 mm, Distance housing - square drive: 17,5 mm, Drive connector square (male): 1/2", Drive connector square (male): 12,5 mm, Drive type/drive: Single square rigid, Graduation [lbf�ft]: 5 lbf�ft, Head height 1 [mm]: 30 mm, Net weight [kg]: 2,2 kg, Parts list: ALU-extension tube No. 8577-350, Precision +/-: +/- 3 %, Range of application: AssemblySeries assemblyProductionMaintenance and repair, Scale division [n-m]: 5 N�m, Storage/Content: in plastic box with aluminium extension tube, Target groups: AutomotiveIndustryMilitaryEnergyMechanical engineeringWorkshopUtilitiesServiceAgricultureOil & Gas, Test certificate: DIN EN ISO 6789-02:2017, Tightening direction: Right, Torque (max.) [lbf�ft]: 90 lbf�ft, Torque (max.) [N�m]: 120 N�m, Torque (min.) [lbf�ft]: 18 lbf�ft, Torque (min.) [N�m]: 25 N�m, Torque range (min./max.) [lbf�ft]: 18 lbf�ft - 90 lbf�ft, Torque range (min./max.) [N�m]: 25 N�m - 120 N�m, Torque wrench type: BR, Trigger mechanism: Short path triggering, Width of head 1 [mm]: 35,0 mm; Use: Controlled screw tightening in the most common range of 25 - 120 N�m / 18 - 90 lbf�ft For use in almost all industrial manufacturing areas Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard 1/2" square drive with ball locking device as per DIN 3120 - A 12.5, ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 5 N�m and 5 lbf�ft With push-button release Technical advantage/Function: Lightweight and robust - housing made of a high-quality aluminium alloy No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches) Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a lever mechanism Forged lever chain from our group own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening
