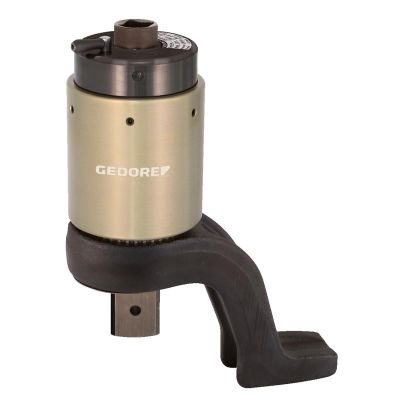

Gedore Torque Multiplier DREMOPLUS ALU 6000 Nm

Item ID: GED2653117
Free Item Included

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Gedore Torque Multiplier DREMOPLUS ALU 6000 Nm

Item ID:
GED2653117
As low as
$1.00
Gedore Torque Multiplier DREMOPLUS ALU 6000 Nm

Features and Benefits:

  • Features:�� Max torque: 6000 Nm
  • input drive: 3/4"
  • 1.5" output drive
  • Mechanical hand torque multiplier for controlled screwtightening and unloosening screw connections�� With a two-stage planet gear�� High-performance aluminium housing�� Torque multiplication ratio: 1:18, 1:22, 1:28.5, 1:39�� All models with anti-wind-up ratchet (RS)�� With non-destructive "Slipper" overload safety mechanismfor gear protection - clockwise and anticlockwise�� Z-form, offset reaction arm depending on model made of chrome-vanadium steel�� Can be optionally retrofitted with L-form straight reaction arm- with adjustable reaction arm - of lightweight metal�� Guaranteed accuracy: Better than +/- 3 % tolerance�� For operation in combination with a torque wrench�� 4 models for maximum load in the range between max. 6000 N�m and max. 13000 N�m�� Output square with drill hole for impact sockets with safety pin and ringScope of delivery:�� Torque Multiplier DREMOPLUS ALU�� With Z-form offset reaction arm�� Delivery in sturdy shipping case with foam insert�� Factory test certificate and setting table�� Detailed technical information is available on request

  • Backflow protection: yes, Distance output square - end of reaction arm (max): 190, Distance output square - start reaction arm (min.): 110, Drive connector square (male): 3/4", Drive connector square female (metric): 20,0 mm, Drive connector square female [inch]: 3/4", Eingangskraft [N�m]: 400 N�m, Input force [lbf�ft]: 300 lbf�ft, Multiplication at the ratio: 1:18, Net weight [kg]: 6,6 kg, Output square: 1.1/2", Output square (inch): 1.1/2", Output square (metric): 38,1 mm, Output torque (max.) [lbf-ft]: 4400, Output torque (max.) [N-m]: 6000, Parts list: Torque multiplier DREMOPLUS ALU Delivery in stable box on pallet Adjustment table Detailed technical information is available on request, REACH registration available: no, Total height with reaction arm (max.): 324, Total height with reaction arm (min.): 316, Total height without reaction arm: 257, Total width without reaction arm: 102, Version reaction arm: Z-Form, cranked; Especially suitable for: Machinery and plant engineering Cable cars, lifts and masts Heavy industry, construction sites Bridge construction Shipbuilding, aircraft and railway construction Refineries, plastics industry Power plants of all kinds Features: Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections With a two-stage planet gear High-performance aluminium housing Models with gear ratio 1:18, 1:22, 1:28.5, 1:39 All models with return flow protection (RS) With non-destructive overload protection "Slipper" to protect the gearbox, right and left hand Z-form, offset reaction arm depending on model made of chrome-vanadium steel Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal Guaranteed accuracy: Better than +/- 3 % tolerance To operate with a suitable torque wrench 4 models with maximum load in the range from max. 6000 N-m to max. 13000 N-m Output square with hole for Impact sockets with locking pin and ring

Full Specifications
Weight 6600.000000
Brand Gedore
UPC 4010886934333

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

Lifetime warranty does not cover abuse
