Features and Benefits:

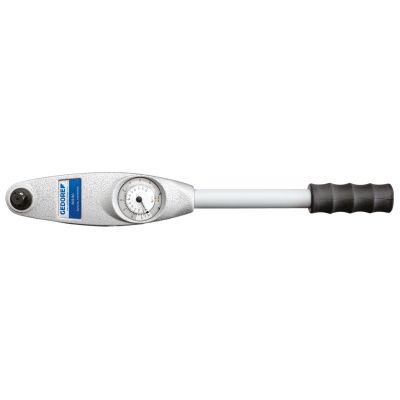

• Dial Torque Wrench
• 280 - 1400 Nm
• 1" drive
• Features:�� Dial-indicating torque wrench with dual scale and slave pointer�� Bi-directional tightening�� For controlled screw tightening and torque measurements�� Working accuracy: +/- 4 % tolerance of the indicated torque�� Acc. to DIN EN ISO 6789, traceable to national standards�� With dual scale in N�m and lbf�in or lbf�ft double-tinted clearly readable face�� Integrated overload protection - mechanical stop up to max. 25 % overload of the maximum value�� Housing made of lightweight, robust special aluminium construction - lacquered, silver-grey�� Black, non-slip rubber handgrips�� Models 8301-04 to 8301-40: EPA-conformant (Electrostatic Protected Area),for use in sensitive electrostatic applications�� Audio-visual signal is standard on models 8303-40 to 8305-20Scope of delivery:�� Dial-measuring torque wrench type 83�� Battery (models 8303-40 to 8305-20)�� Test certificate acc. to DIN EN ISO 6789�� Delivered in a sturdy black plastic box (no. 8301-04 to 8302-20), otherwise in sturdycardboard packaging (no. 8303-40 to 8305-20)


Drive connector square (male): 1", Drive connector square (male): 25 mm, Drive type/drive: Double square, Graduation: 25, Graduation [lbf�ft]: 25 lbf�ft, Net weight [kg]: 16,7 kg, Range of application: ProductionQuality controlMaintenance and repair, Scale division [n-m]: 25 N�m, Target groups: AutomotiveElectronics industryIndustryConstruction and commercial vehiclesMilitaryMechanical engineeringUse: Controlled tightening and verification of tightening values For use in almost all industrial manufacturing areas Dual scale. Dial provides effective measurement in Metric and Imperial torque units in both directions, delivering flexibility and minimising tool investment Features: Dial-indicating torque wrench with dual scale and slave pointer 1/4", 3/8", 1/2", 3/4" or 1" double square drive with ball lock for controlled right and left tightening Versatile usage. Use for Maintenance, Repair, Assembly and Quality Control For controlled screw tightening and torque measurements Display accuracy: +/- 4 % tolerance of the indicated value Acc. to DIN EN ISO 6789, traceable to national standards With dual scale in N�m and lbf�in or lbf�ft double-tinted clearly readable face 5 % overload of the maximum value Housing made of light, robust special aluminium construction - painted silver-grey Black, non-slip rubber handgrips Model No. ADS 4 to No. ADS 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications With audio-visual signal Test certificate acc. to DIN EN ISO 6789
