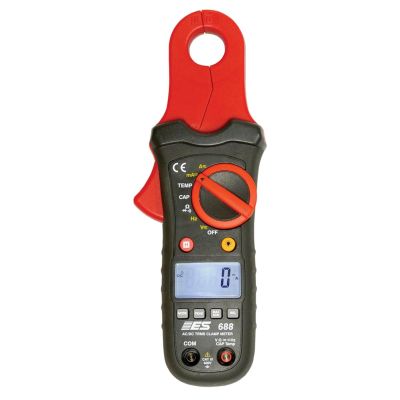

Electronic Specialties True RMS Low Current Clamp Meter

Item ID: ESI688
Free Item Included

Electronic Specialties True RMS Low Current Clamp Meter

Item ID:
ESI688
As low as
$1.00
Electronic Specialties True RMS Low Current Clamp Meter

Features and Benefits:

  • Designed to provide stable and accurate measurements down to 1mA, great tool for parasitic drain testing - measures up to 80A, DC/AC
  • Large 3/4" clamp size - can clamp over larger ground cables and some multiple ground cable systems
  • Zippered carrying case, temp probe and test leads included
  • Peak Min/Max, Min/Max - 5000 count LCD display with backlighting and analog bargraph
  • True RMS accuracy  - also measures DC/AC Volts, Ohms, Capacitance, Frequency, Temperature, Continuity and Diodes

This new clamp meter is the result of 3 years of development incorporating several important requirements for automotive testing.  First, the larger clamp opening of 19mm allows for clamping over larger ground cables and some of the multiple ground cable systems.  Many re-sellers and end users have requested the larger clamp size over the past 7 or 8 years, so we were able to accomplish this, while still keeping the required 1mA low resolution for battery drain testing.  Second, we improved the zero stability over existing Model 687 - another request from the field.  Other notable improvements over 687 include:  double injection housing (much higher quality housing), greater DMM functions/features like analog bargraph and min/max.  This product incorporates many requested improvements and feedback that we've received from voice of the customer.

Full Specifications
Weight 1.100000
Brand Electronic Specialties
UPC 855174001915

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
