EMAX Two EMAX 10HP 3ph 120 Gallon Vertical Solo Mounted Alternating Silent Air compressors-w/Pressure Lubricated pumps
Item ID: EMXESP10A120V3
Free Item Included

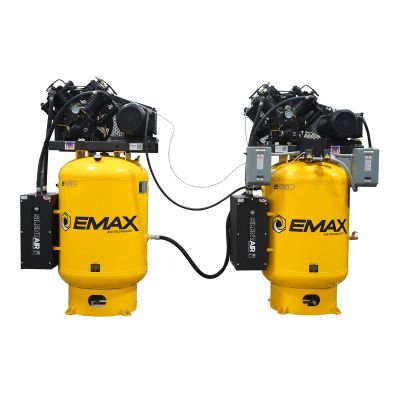

![EMXESP10A120V3 image(0) - EMAX Two EMAX 10HP 3ph 120 Gallon Vertical Solo Mounted Alternating Silent Air compressors-w/Pressure Lubricated pumps](https://d1s88xo4cxqsdq.cloudfront.net/media/catalog/product/cache/6218a09731455f6408f4cf811a7257f9/i/k/ikyucrkrkvizzfuhdvonyh.jpg)
Compare Products
EMAX
EMAX Two EMAX 10HP 3ph 120 Gallon Vertical Solo Mounted Alternating Silent Air compressors-w/Pressure Lubricated pumps
Item ID:
EMXESP10A120V3
EMAX Two EMAX 10HP 3ph 120 Gallon Vertical Solo Mounted Alternating Silent Air compressors-w/Pressure Lubricated pumps
Features and Benefits:
- 78 CFM @ 100 PSI
- Voltage 208/230/460 Three Phase
- Two 120 Gallon Vertical Tanks
- Maximum 175 PSI
EMAX Compressor has added our Alternating line to the EMAX Silent Air family. By adding these alternating compressors to our Silent Air line, we have added to the needs of our high demand customers all while keeping with their quiet air needs. The benefits to these compressors are the alternating switch that will allow the units to alternate from one pump to another. The unit will pump up to set pressure, then under the next start-up sequence the opposing pump will start. This eliminates excessive running and allows the pumps to cool under heavy loads. These units also have a feature that if one pump will not maintain set pressure and is not keeping up with demand, then both units will come on and run until the unit hits the pressure setting, after which it will go back into normal alternating mode. There are (2) of our low RPM solid cast iron Patented pressure lubricated pumps paired with (2) industrial grade 1750 RPM TEFC motors, (2) Magnetic Starters with a relay switch all installed on (2) ASME certified vertical tanks. This unit has all the features to make using it a breeze from its automatic tank drain to the belt tensioners and the continuous run mode. These units also feature our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%.
Weight | 1020.000000 |
---|---|
Brand | EMAX |
UPC | 815002018287 |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
