Bosch GM MDI 2 Global Diagnostic Interface Acdelco Tool

Item ID: BOSEL-52100-AM
Free Item Included

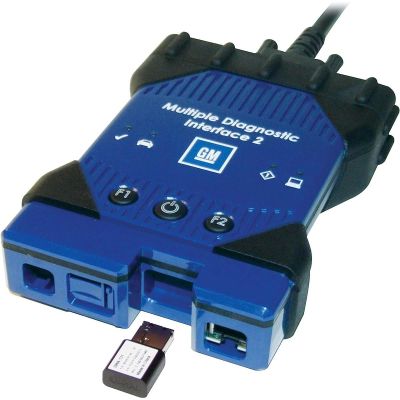

Bosch GM MDI 2 Global Diagnostic Interface Acdelco Tool

Item ID:
BOSEL-52100-AM
As low as
$1.00
Bosch GM MDI 2 Global Diagnostic Interface Acdelco Tool

Features and Benefits:

  • The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming speeds on Global A and future Global B vehicles.
  • The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win. It also supports Pass-Thru programming applications: TIS2Web‐SPS. It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM models. The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5).
  • Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer programming events.
  • The MDI 2 is powered from the vehicle battery via the DLC Cable. It may also be powered over USB to perform firmware updates only using a PC.
  • Uses USB 2.0 for faster firmware downloads instead of a separate AC power supply.
  • The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use. The cable only connects to the MDI 2.
  • Kit Includes Components:
  • MDI device
  • DLC Cable SAE J1962
  • 10-ft. USB A to USB B Cable
  • Ethernet Cable
  • Two pcs. of D-Link Wireless USB Adapters (Dongles) for wireless connection
  • Service:
  • Multilingual support hotline for hardware problems and questions
  • Exchange process (within the warranty period) when your hardware develops a fault, reducing downtime.
  • 2 year supplier warranty

  • The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.

Full Specifications
Weight 2.600000
Brand Bosch
UPC 4047026615463

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

2 yr warranty on material and workmanship
