Features and Benefits:

• MaxiSYS MS909CV performs enhanced system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles.
• 9.7-inch Wireless Android-Based Touchscreen Diagnostics Tablet
• Octa-core Processor / 128 GB Storage Memory
• Wireless Vehicle Communication Interface (VCI)/J2534 passthru programming device
• Advanced diagnostics with Dynamic Module Topology, and the ability to perform Active Tests and Special Functions
• Performs Starting and Charging Systems Analysis with included MaxiBAS B200 tester with alligator clamps
• Includes Multimeter & Amp Clamp
• ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems
• Rapid Vehicle Identification via VINscan and AutoVin
• Includes One Year Limited Warranty and Free Software Updates

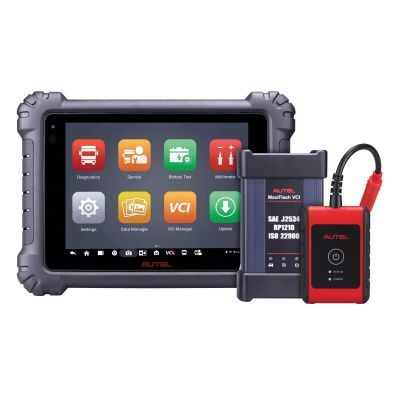

The Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive diagnostics including the ability to read/erase codes, view/graph live data, and perform active tests. The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer, the MaxiBAS B200 battery/starting/charging system test device, alligator clamps, multimeter and amp clamps. The tablet also includes ADAS Calibration Software for Class 3-5 vehicles and Class 6-8 vehicles with dynamically calibrated systems. The MS909CV includes one year limited warranty and a year of free software updates.

Autel TOP Factory CV Scan Tool Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles.

Top Hardware Backed by 2.2GHz Quad-core A73 + 1.8GHz Quad-core A53, 4GB RAM & 128GB On-board Memory, 15000mAh super large battery.

Topology Mapping Specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the number of systems, number of each system DTC and relation of the systems at just a glance, fast your troubleshooting for ECU circuit faults.

ECU Coding With the J2534 programmer, Autel Scanner MS909CV is allowed for advanced ECU coding function, it can update the vehicle's on-board system to the latest, write adaptive data for certain components after repairs or replacements.

Bi-Directional Control(Active Test) Autel commercial vehicle diagnostic scan tool MS909CV has bi-directional control capability over various car systems and components and is able to command the ECU module or component to perform specific tests to pinpoint faults, such as rolling up / down a window, etc.
