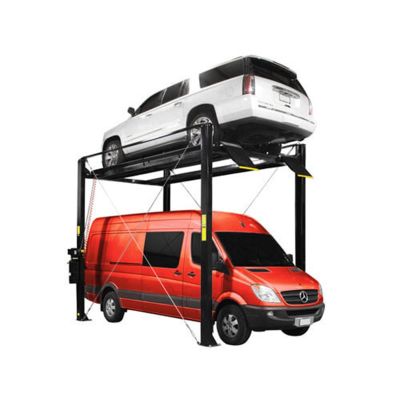

Atlas Automotive Equipment Atlas Equipment Garage PRO7000ST Super Tall 7,000 lb. Capacity 4-Post Lift

Item ID: ATEXH-PRO7000ST-FPD
Free Item Included
Freight Included

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Atlas Automotive Equipment Atlas Equipment Garage PRO7000ST Super Tall 7,000 lb. Capacity 4-Post Lift

Item ID:
ATEXH-PRO7000ST-FPD
As low as
$1.00
Atlas Automotive Equipment Atlas Equipment Garage PRO7000ST Super Tall 7,000 lb. Capacity 4-Post Lift
Features & Benefits
  • 7,000 lb. Capacity
  • Heavy Duty
  • "Super Tall" Lifting Height
  • Extra Wide & Extra Long
  • Diamond Plated Runways
  • Single Point Release, Pneumatic Locks
  • Lock Ladder Design
  • Double Lock Safety System
  • Steel Approach Ramps Included
  • Mounting Hardware Included
  • Perfect for Storage or Working on Vehicles
  • 220volt/1phase Electric Operation (Requires 30amp Breaker)
  • 2 Year Structural/1 Year Hydraulic Warranty
  • Shipping Weight: 2,866 lbs.
  • This part number FREIGHT PREPAID

The Atlas® Garage PRO7000ST is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The PRO7000ST raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway.

This super tall four post storage lift uses the same heavy duty runways as the Atlas® Garage PRO9000. The runways feature welded tracks which allow the use of a rolling bridge jack (such as the Atlas® RJ6BK or Atlas® RJ6BKAH). The extra tall lifting height gives customers the space needed to park much taller vehicles under the vechile stored on top. There are a whopping 21 locking positions in the lock ladder, and the lock ladder may be adjusted during installation giving an almost infinite number of locking heights.

A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the cables are compromised or become too slack.

Atlas® Garage PRO7000ST Specifications:

  • Capacity: 7000 lbs
  • Lifting Height, Top of Runway: 147" (12' 3")
  • Clearance Under Runways: 142" (11' 10")
  • Height of Columns: 162" (13' 6")
  • Overall Width: 110 1/2" (9' 2 1/2") w/ motor 123" (10' 3")
  • Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
  • Runway Length: 194" (16' 2")
  • Runway Width: 21"
  • Runway Thickness: 4 1/2"
  • Width Between Runways: 45" w/ Rail 41 3/4"
  • Outside Runway to Outside Runway: 83" (6' 11")
  • Clearance Between Columns: 100" (8' 4")
  • Length Between Columns: 185" (15' 5")
  • Drive Thru: 82 1/2" (6' 10 1/2")
  • Motor/Electrical Requirement: 220volt/1phase, 30 amp breaker required
  • Oil Requirement: 5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight: 2866 lbs

Full Specifications
Weight 2866.000000
Brand Atlas Automotive Equipment
UPC 810524028240

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
