9000 LB BASEPLATE LIFT (WILL CALL)

Item ID: ATEXH-9KBPX
Free Item Included
Pickup Only

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

9000 LB BASEPLATE LIFT (WILL CALL)

Item ID:
ATEXH-9KBPX
As low as
$1.00
Click here for everything you need to know about shipping and delivery of our Atlas lifts.
9000 LB BASEPLATE LIFT (WILL CALL)

Features and Benefits:

  • 9,000 lb. Capacity
  • Baseplate, Open-Top Style Lift
  • Designed For Low Ceiling Clearance – 9′ 3 ½” Columns
  • Symmetric Arms
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System (SLS)
  • Free 8 Piece Truck Adapter Set
  • Automatic Arm Restraints
  • Dual Point Lock Release
  • Mounting Hardware Included
  • Shipping Weight: 1,400 lbs.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
  • This part number WILL CALL ONLY

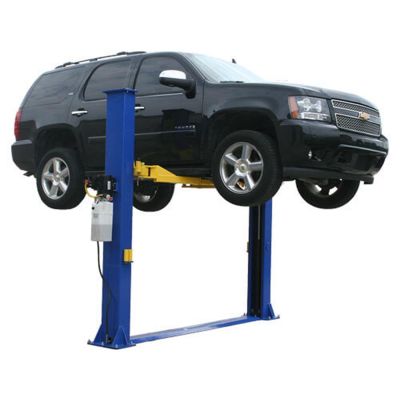

The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX “chain over roller” lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV’s and light duty trucks (not recommended to lift Diesel Dually or other large trucks

Atlas® XH-9KBPX Specifications

  • Capacity 9,000 LB.
  • Overall Height 111 1/2" (9’ 3 1/2")
  • Overall Floor Width 134 1/2" (11’ 2 1/2")
  • Outside Column to Outside Column 124 7/8" (10’ 4 7/8")
  • Maximum Lift Height (Without Adapters) 74 1/2"
  • Maximum Lift Height (With Adapters) 81"
  • Minimum Arm Height 4"
  • Inside Column 110” (9’ 2”)
  • Drive Thru 101” (8’ 5”)
  • Column Size 7 1/4" x 11"
  • Column Thickness of Steel 5mm
  • Base Of Lift 14 1/4" x 18 1/4"
  • Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight 1,400 LBS.
  • Adapter Heights 4 Each 1.5”, 5”
  • Arm Hole/Adapter Peg Size 1.5”
  • Requires a minimum of 4" of concrete with a 3000 psi. rating
Full Specifications
Weight 1450.000000
Brand Atlas Automotive Equipment
UPC 810524020008

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

2 yr warranty on material and workmanship
