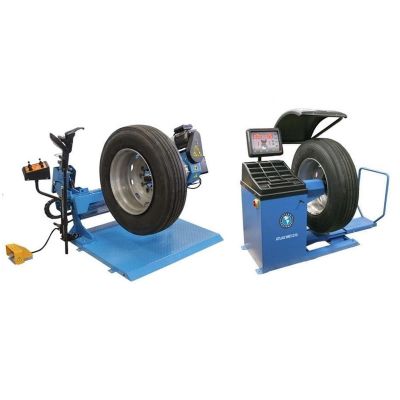

Atlas Equipment TC305A Tire Changer+WBT210 Wheel Balancer Combo (WILL CALL)

Item ID: ATETTCWB-COMBO2
Free Item Included

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Atlas Equipment TC305A Tire Changer+WBT210 Wheel Balancer Combo (WILL CALL)

Item ID:
ATETTCWB-COMBO2
As low as
$1.00
Atlas Equipment TC305A Tire Changer+WBT210 Wheel Balancer Combo (WILL CALL)

Truck Tire Changer & Heavy Duty Wheel Balancer Combo Package:

Atlas® TC305A Automatic Truck Tire Changer

  • Fully Automatic Truck Tire Changer
  • Handles rims from 8" to 26" and tire diameters in excess of 55"
  • Accommodates tires with a max width of up to 30 1/2"
  • Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
  • Bead Breaker
  • Interchangeable Mount/Demount and Roller Heads
  • Electric/Hydraulic Self-Centering Four Jaw Chuck
  • 5 different rim locking positions
  • Mounted Control Unit w/ additional Foot Pedal Controls
  • Heavy Duty Tire Tool Included
  • Rim Clamps for Steel and Alloy Wheels Included
  • Alloy Rim Adapter Set w/ Plastic Inserts Included

Atlas® WBT210 Heavy Duty Spin Balancer

  • Cone sets for car and light truck tires included
  • Cone and spacer set for truck, bus, or implement tires included
  • Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
  • Pneumatic wheel lift (external air supply required - NOT INCLUDED)
  • Automatic start/stop when hood is lowered/raised
  • Static and dynamic balancing modes
  • Rapid optimization (OPT)
  • Self-Diagnosing and Calibrating
  • Exceptional stability in reading the unbalance between planes
  • Display in grams or ounces, and in mm or inches
  • Wheel Weight Pliers & Wheel Width Caliper Included
  • Both Machines 1 Year Parts Only Warranty
  • This part number WILL CALL ONLY

This Combo Package includes the Atlas® TC305A truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Atlas® TC305A automatic truck tire changer is designed and engineered to handle rim bore sizes from 8 inches to 26 inches and tire diameters in excess of 55 inches. The fully automatic Atlas® TC305A truck tire changer can easily accommodate tires with a maximum width of 30 1/2 inches. This automatic truck tire changer is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the most well respected wheel service equipment manufacturer in Asia.

The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14 inch steel rim up to and including a 300 pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized ” gumbo-mudders ” that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.

The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

Atlas® TC305A Specifications:

  • Max Tire Diameter: 55"
  • Max Tire Width: 30 1/2"
  • Rim Clamping Range: 8" - 26" (w/ adapters)
  • Max Wheel Weight: 838 lbs
  • Clamping Power: 6600 lbs
  • Operating Pressure: 0 - 1885 psi
  • Acoustic Pressure: <70dBA
  • Bead Breaker Force: 3990 lbs
  • Tool Arm Posiitoning: Automatic
  • Tool Head Positioning: Automatic
  • Construction: Single Piece Frame w/ Solid Floor-Plate
  • Hydraulic Motor Power: 2HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required
  • Chuck Motor Power: 3HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required
  • Shipping Weight: 1490 lb

    Atlas® WBT-210 Specifications

    • Max Tire Diameter 47"
    • Rim Sizes (Cars And Light Trucks) 10"-32"
    • Rim Width 1 1/2"-20"
    • Shaft Size 40mm
    • Max. Wheel W
Full Specifications
Weight 2475.000000
Brand Atlas Automotive Equipment
UPC 810524029780

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
