Features and Benefits:

• Plus Package: Low oil shut off, Auto-tank drain, Aftercooler
• 2-Stage Pump
• 7.5hp, 1750 RPM Motor
• 80 Gallon Vertical Tank (Made in the USA)
• Air Output 145-175 PSI
• Extremely Quiet Operation
• Magnetic Starter Included
• Set of Vibro-Isolation Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Finned tank inlet tube for reduced tank water accumulation
• Heavy Duty Metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty
• This part number FREIGHT PREPAID

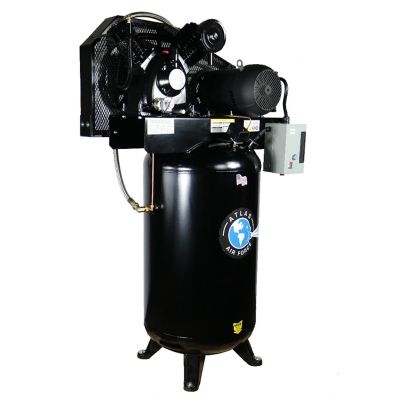

This version of our popular Atlas® Air Force AF9 includes the “PLUS PACKAGE.” The “PLUS” features for our commercial grade two stage air compressors include an automatic low oil monitor, automatic tank drain, and air cooled aftercooler. These three features help to extend the life of your Atlas® air compressor while also delivering “better air”.

Atlas® Air Force AF9P is the perfect compressor for many auto shops of all sizes and is recommend for any business that depends on their air compressor to deliver flawlessly every business day.

Atlas® Air Force AF9P operates between 145-175 PSI. The AF9-17 comes standard with a USA made 80 gallon steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

Atlas® Air Force AF9P Specifications

• Motor Running: 7.5 Horsepower
• Motor RPM: 1750
• Pressure Setting: 145-175 PSI
• Delivered CFM at 90 PSI: 23
• Delivered CFM at 175 PSI: 22
• Tank Capacity: 80 Gallons
• Compressor Pump: 3 Cylinder, 2-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 40" x W 24" x H 71"
• Motor/Electrical Requirement: 220volt Single Phase, 40 amp breaker required
• Shipping Weight: 638 lbs
