Features and Benefits:

• "Plus Package": aftercooler, low oil shut off, auto-tank drain
• Cast Iron, V Cylinder, 2-Stage Pump
• Aluminum head & Machined Cast Iron valve plate
• Durable Stainless Steel Reed Valves
• Shipped with 100% Synthetic Air Compressor Oil
• 7.5hp, 1750 RPM Motor
• 120 Gallon Horizontal Tank (Made in the USA)
• Air Output 145-175 PSI
• Extremely Quiet Operation
• Magnetic Starter Included
• Set of Vibro-Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Heavy Duty Metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty

This version of our popular Atlas® Air Force AF9 inlcudes the "PLUS PACKAGE." The “PLUS" features for our commercial grade two stage air compressors include an automatic low oil monitor, automatic tank drain, and air cooled aftercooler. These three features help to extend the life of your Atlas® air compressor while also delivering “better air”. This version also comes with the added capacity of an oversized 120 Gallon horizontal tank.

Atlas® Air Force AF9P-120H is the perfect compressor for many auto shops of all sizes and is recommend for any business that depends on their air compressor to deliver flawlessly every business day.

Atlas® Air Force AF9-120H operates between 145-175 PSI. This model comes standard with a USA made 120 gallon horizontal steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipmentt

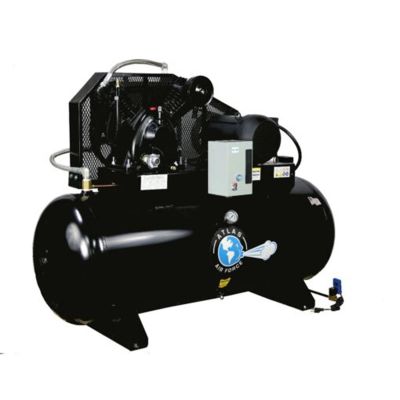

Atlas® Air Force AF9P-120H Specifications

• Motor Running: 7.5 Horsepower
• Motor RPM: 1750
• Pressure Setting: 145-175 PSI
• Delivered CFM at 90 PSI: 23
• Delivered CFM at 175 PSI: 22
• Tank Capacity: 120 Gallons
• Compressor Pump: 3 Cylinder, 2-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 72" x W 32" x H 52"
• Motor/Electrical Requirement: 220volt Single Phase, 50 amp breaker required
• Shipping Weight: 980 lbs
