Features and Benefits:

• Cast Iron, V Cylinder, 2-Stage Pump
• Aluminum head & Machined Cast Iron valve plate
• Durable Stainless Steel Reed Valves
• Shipped with 100% Synthetic Air Compressor Oil
• 7.5hp, 1750 RPM Motor
• 120 Gallon Horizontal Tank (Made in the USA)
• Air Output 145-175 PSI
• Extremely Quiet Operation
• Magnetic Starter Included
• Set of Vibro-Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Heavy Duty Metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty
• This part number FREIGHT PREPAID

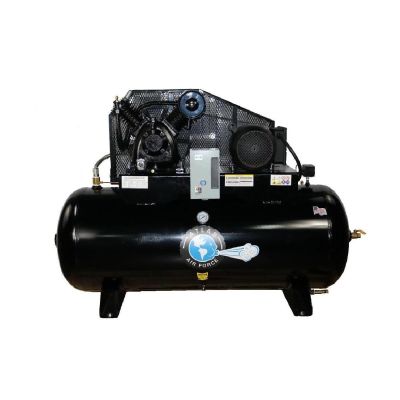

The Atlas® Air Force AF9-120H has all the same features and specifications as the popular AF9 but with added capacity of an oversized 120 Gallon horizontal tank.

The Atlas® Air Force AF9-120H operates between 145-175 PSI. This model comes standard with a USA made 120 gallon horizontal steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

Atlas® Air Force AF9-120H Specifications

• Motor Running: 7.5 Horsepower
• Motor RPM: 1750
• Pressure Setting: 145-175 PSI
• Delivered CFM at 90 PSI: 23
• Delivered CFM at 175 PSI: 22
• Tank Capacity: 120 Gallons
• Compressor Pump: 3 Cylinder, 2-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 72" x W 32" x H 52"
• Motor/Electrical Requirement: 220volt Single Phase, 40 amp breaker required
• Shipping Weight: 980 lbs
