Features and Benefits:

• 2-Stage Pump
• 5hp Motor
• 80 Gallon Vertical Tank (Made in the USA)
• Air Output 90-175 PSI
• Extremely Quiet Operation
• Magnetic Starter Included
• Set of Vibro-Isolation Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Finned tank inlet tube for reduced tank water accumulation
• Heavy Duty Metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty
• This part number FREIGHT PREPAID

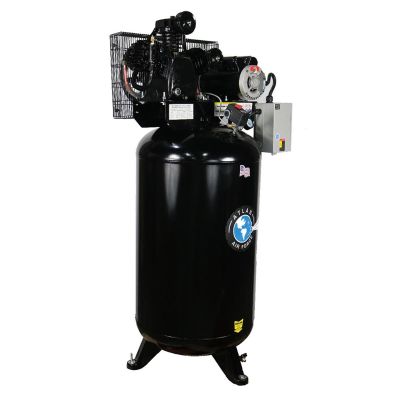

The Atlas® Air Force AF7 is our entry level commercial grade two (2) stage vertical air compressor. This unit operates between 140 and 175 PSI. The combination of the commercial grade motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The AF7 comes standard with a USA made 80 gallon steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit.

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force shop compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

Atlas® Air Force AF7 Specifications

• Motor Running: 5 Horsepower
• Pressure Setting: 90-175 PSI
• Delivered CFM at 90 PSI: 18.5
• Delivered CFM at 175 PSI: 14.5
• Tank Capacity: 80 Gallons
• Compressor Pump: 3 Cylinder, 2-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 36" x W 24" x H 69"
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Shipping Weight: 485 lbs
