Features and Benefits:

• 2-Stage Pump
• Motor 5HP Running
• 80 Gallon Vertical Tank (Made in the USA)
• Air Output 90-175 PSI
• Extremely Quiet Operation
• Set of Vibro-Isolation Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Finned tank inlet tube for reduced tank water accumulation
• Heavy Duty Metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty
• This part only FREIGHT PREPAID

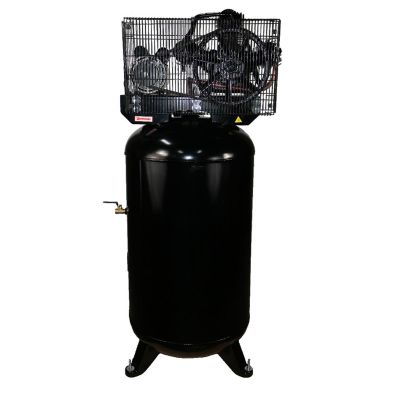

The Atlas® Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between 145 and 175 PSI and will run our Atlas® line of sandblast cabinets (when using Medium or Medium-Fine glass bead). The combination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price.

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force shop compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

Atlas® Air Force AF6 Specifications

• Motor Running: 5 Horsepower
• Pressure Setting: 90-175 PSI
• Delivered CFM at 90 PSI: 18.5.0
• Delivered CFM at 175 PSI: 14.5
• Tank Capacity: 80 Gallons
• Compressor Pump: 3 Cylinder, 2-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 36" x W 24" x H 69"
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Shipping Weight: 485 lbs
