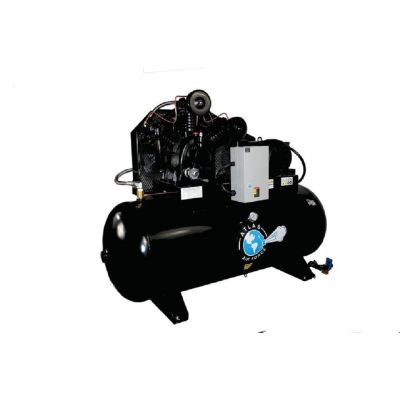

Atlas Automotive Equipment 10HP 3Phase 120 Gallon Horizontal Air Compressor (WILL CALL)
Item ID: ATEMPAF10-3PH
Free Item Included
Proposition 65 Warning for California Consumers
WARNING: - www.P65Warnings.ca.gov
Compare Products
Atlas Automotive Equipment 10HP 3Phase 120 Gallon Horizontal Air Compressor (WILL CALL)
Item ID:
ATEMPAF10-3PH
Atlas Automotive Equipment 10HP 3Phase 120 Gallon Horizontal Air Compressor (WILL CALL)
Features and Benefits:
- "Plus Package": aftercooler, low oil shut off, auto-tank drain
- 2-Stage Pump
- 10hp, low RPM Motor
- 120 Gallon Horizontal Tank (Made in the USA)
- Air Output 145-175 PSI
- Extremely Quiet Operation
- Magnetic Starter Included
- Compressor oil drain extension tube
- Finned tank inlet tube for reduced tank water accumulation
- Heavy Duty Metal Belt Guard
- Electric: 220volt/3phase
- 1 Year Parts Only Warranty
This version of the Atlas® Air Force AF10 is 220volt THREE (3) Phase electric. The AF10 is a heavy duty, commercial grade compressor that is perfect for large automotive repair or body shops looking for the most air possible. The Atlas® AF10 comes standard with the air compressor "PLUS PACKAGE." The “PLUS" features for our commercial grade two stage air compressors include an automatic low oil monitor, automatic tank drain, and air cooled aftercooler. These three features help to extend the life of your Atlas® air compressor while also delivering “better air”. The AF10 also comes standard with the added capacity of an oversized 120 Gallon horizontal tank.
The Atlas® Air Force AF10 operates between 145-175 PSI. This model comes standard with a USA made 120 gallon horizontal steel tank and also includes a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit
The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment
Atlas® Air Force AF10-3PH Specifications
- Motor Running: 10 Horsepower
- Pressure Setting: 145-175 PSI
- Delivered CFM at 90 PSI: 37
- Delivered CFM at 175 PSI: 35
- Tank Capacity: 120 Gallons
- Compressor Pump: 3 Cylinder, 2-Stage
- Air Outlet Size: 1/2" NPT
- Overall Dimensions: L 72" x W 32" x H 52"
- Motor/Electrical Requirement: 220volt Three Phase, 30 amp breaker required
- Shipping Weight: 1000 lbs
| Weight | 980.000000 |
|---|---|
| Brand | Atlas Automotive Equipment |
| UPC | 376204972840 |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty from date of shipment from vendor
