Features and Benefits:

• 8,000 lb. Capacity
• Hobbyist Grade Lift ‐ Not intended for heavy commercial use
• Baseplate, Open-Top Style Lift
• 3-Stage front arms/2-Stage rear arms
• Automatic Arm Restraints
• Single-Point Lock Release
• Double Safety Lock System
• Dual Hydraulic Chain-Drive Cylinders
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,300 lbs.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• This part number WILL CALL ONLY

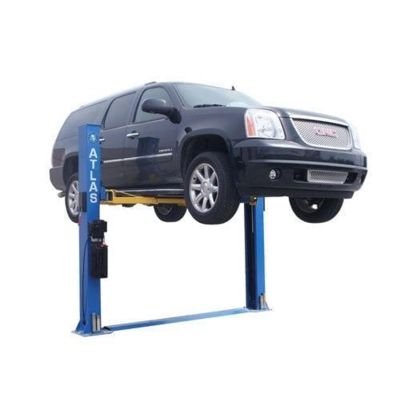

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.

Atlas® ATTD-BP8000 Specifications

• Capacity 8,000 LB.
• Overall Height 108" (9�)
• Overall Floor Width 132" (11�)
• Outside Column to Outside Column 124" (10� 4")
• Maximum Lift Height (Without Adapters) 75 1/2"
• Maximum Lift Height (With Adapters) 86 1/2"
• Minimum Arm Height 4"
• Inside Column 109 1/8” (9� 1 1/8”)
• Drive Thru 99” (8� 3”)
• Column Size 7 1/4" x 11"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 17 3/4"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,300 LBS.
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating
