Features and Benefits:

• 10,000 lb capacity
• Commercial Grade
• Baseplate, Open-Top Style Lift
• Overall Height: 111 7/8? (9? 3 7/8?)
• Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
• Super-Symmetric Arms
• Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
• Welded Support Gussets Increase Column Strength
• Automatic Arm Restraints
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Shipping Weight: 1,640 LBS.
• 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

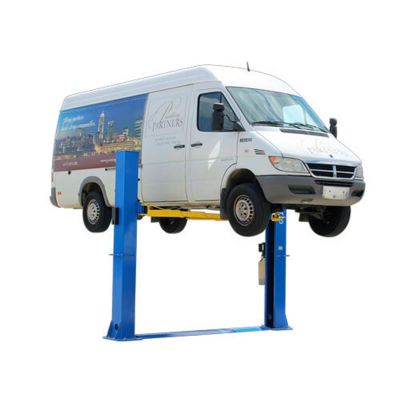

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

Atlas® ATTD-BP10000X Specifications

• Capacity 10,000 LB.
• Overall Height 111 7/8" (9� 3 7/8")
• Overall Floor Width 139 1/8" (11� 7 1/8")
• Outside Column to Outside Column 134 1/2" (11� 2 1/2")
• Maximum Lift Height (Without Adapters) 77 3/8"
• Maximum Lift Height (With Adapters) 86 3/8"
• Minimum Arm Height 4"
• Inside Column 112 1/4” (9� 4 1/4”)
• Drive Thru 101 1/4” (8� 5 1/4”)
• Column Size 9 1/2" x 11"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 21 1/2"
• Motor/Electrical Requirement 220 volt single (1) phasem (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,640 LBS.
• Adapter Heights 4 Each 2”, 3”, 6”
• Arm Hole/Adapter Peg Size 1.5”
• Requires a minimum of 4" of concrete with a 3000 psi. rating
