Features and Benefits:

• Combo package includes the Premium 408SL lift & two RJ35 Bridge Jacks
• Caster Kit With Polyurethane Wheels Included
• Steel Approach Ramps Included
• Steel Jack Tray Included
• Drip Trays Included
• Wheel Stops Included
• Truck Adapter set for Each Jack Included
• This part number FREIGHT PREPAID

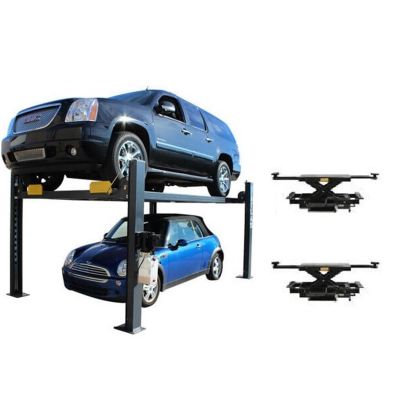

The Atlas® 408SL super deluxe portable vehicle storage lift is designed for those car enthusiasts who demand the absolute best look and superior quality. The 408SL has all the great features of our Atlas® Garage Pro Series 4 post hobbyist lifts, but incorporates many features found only on our Atlas® commercial grade 4-post lifts. All columns incorporate two special bends which help to increase the column strength. These strategic bends also increase the surface area for the slide block to travel. Horizontal cables are “hidden” inside of the cross tubes. Professional grade wheel covers are used to eliminate almost all exposure of cables and the double lock system.The Atlas® 408SL has “more metal” and weighs over 100 lbs. more than other hobbyist lifts based upon the same column and runway configuration.

The Atlas® 408SL is built to the same commercial lift standards as our Atlas® 412 and Atlas® 414 four post lifts, but also offers portability (Caster Kit included)

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® 408SL Specifications:

• Capacity: 8000 lbs
• Lifting Height, Top of Runway: 70" (5' 10")
• Clearance Under Runways: 65 1/4" (5' 5 1/4")
• Height of Columns: 83" (6' 11")
• Overal Width: 109 5/8" (9' 1 5/8") w/ motor 117 1/2" (9' 9 1/2")
• Overall Length w/ Ramps: 205 3/8" (17' 1 3/8")
• Runway Length: 166 3/4" (13' 10 3/4")
• Runway Width: 18 3/4"
• Runway Thickness: 4 3/4"
• Width Between Runways: 37 1/4" w/ Rail 34 3/8"
• Outside Runway to Outside Runway: 74 3/4" (6' 2 3/4")
• Clearance Between Columns: 95 1/2" (7' 10 1/2")
• Length Between Columns: 156" (13')
• Drive Thru: 82" (6' 10")
• Motor/Electrical Requirement: 110volt, 30 amp breaker required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
• Shipping Weight: 1965 lbs

• Atlas® RJ35 Sliding Jack Specifications

  • Capacity: 3500 lbs
  • Lower Extension Width (Between Runway): 20 1/2" to 47"
  • Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"
  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
  • Lift Pad Height Above Arm: 1 3/8"
  • Max Height Raised w/o Adapter: 11"
  • Max Height Raised w/ Adapters: 17 1/4"
  • Shipping Weight: 350 lbs
  • Adapter Heights: 2 Each 1 1/2", 5"
  • Arm Hole/Adapter Peg Size: 1 1/2"
