Features & Benefits:

• Super Duty Truck Tire Changer
• 220VOLT 1 PHASE ELECTRIC
• Handles rims from 14" to 56" and tire diameters in excess of 90"
• Accommodates tires with a max width of up to 42"
• Bead Breaker
• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• 1 Year Parts Only Warranty
• This part number FREIGHT PREPAID

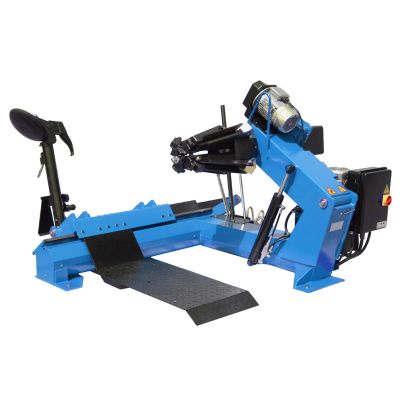

The Super Duty Atlas® TTC303 truck tire changer is designed and engineered to handle rim sizes from 4-1/4 inches to 56 inches and tire diameters in excess of over 90 inches. The Atlas® Truck Tire Changer can easily accommodate tires with a maximum width of up to 42 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.

This Atlas® TTC303 truck tire changer is designed for high volume truck tire shops that demand dependability and durability in their equipment.

The Atlas® TTC303 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease. The Atlas® TTC303 truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on standard over the road wheel assemblies and demands the capabilities to change agricultural and off road wheel assemblies.

Atlas® TTC303 Specifications

• Max Tire Diameter: 90 1/2" (7' 6 1/2")
• Max Tire Width: 42"
• Rim Clamping Range: 14" - 46"
• Rim Clamping Range w/ Extensions: 47" - 56"
• Max Wheel Weight: 3300 lbs
• Clamping Power: 13173 lbs
• Operating Pressure: 0 - 1885 psi
• Acoustic Pressure: <70dBA
• Bead Breaker Force: 5930 lbs
• Tool Arm Posiitoning: Manual
• Tool Head Positioning: Manual
• Construction: Single Piece Frame w/ Solid Floor-Plate
• Hydraulic Motor Power: 2HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required
• Chuck Motor Power: 2HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required
• Shipping Weight: 1800 lbs
