Features and Benefits:

• Standard Truck Tire Changer
• Handles rims from 13? to 27? and tire diameters in excess of 63?
• Accommodates tires with a max width of up to 30 1/2?
• Bead Breaker
• Mount/Demount Head
• Electric/Hydraulic Self-Centering Four Jaw Chuck
• 5 different rim locking positions
• Wired Mobile Control Unit
• Heavy Duty Tire Tool Included
• Rim Clamps for Steel and Alloy Wheels Included
• Alloy Rim Adapter Set w/ Plastic Inserts Included
• 1 Year Parts Only Warranty
• This part number WILL CALL ONLY

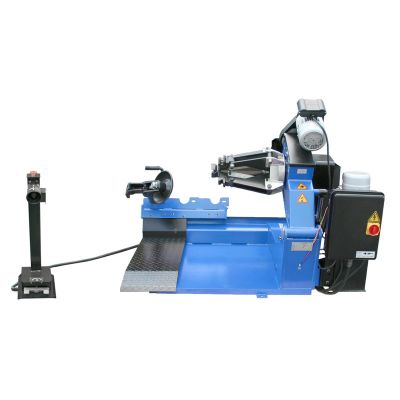

This Heavy Duty Atlas® TTC301 truck tire changer is designed and engineered to handle rim sizes from 13 inches to 27 inches and tire diameters in excess of 63 inches. The Atlas® TTC301 truck tire changer can easily accommodate tires with a maximum width of 30.5 inches. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.

The Atlas® TTC301 truck tire changer is designed for high volume tire shops that demand dependability and durability in their equipment. The TTC301 is the perfect choice for the large truck tire center or large farm that does high volume truck tire work on standard over the road wheel assemblies.

Atlas® TTC301 Specifications

• Rim Clamping Range 13" - 27"
• Minimum Clamping Size W/ Alloy Adapters 6 3/8"
• Max Wheel Weight 3,300 lbs.
• Max Tire Diameter 63" (5' 3")
• Max Tire Width 30 1/2" (2' 6 1/2")
• Clamping Power 6,614 lbs
• Operating Pressure 0-1885 PSI
• Acoustic Pressure 70dBA
• Bead Breaker Force 4112 lbs.
• Tool Arm Positioning Manual
• Tool Head Positioning Manual
• Construction Single Piece Frame w/ Solid Floor Plate
• Hydraulic Motor Power 2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Chuck Motor Power 3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
• Shipping Weight 1,390 lb.
