Atlas Automotive Equipment 8,000 lb Air/Hydraulic Rolling Bridge Jack (SHIPPED)
Atlas Automotive Equipment 8,000 lb Air/Hydraulic Rolling Bridge Jack (SHIPPED)
Features and Benefits:
- 8,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required - NOT INCLUDED)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
- This part number FREIGHT PREPAID

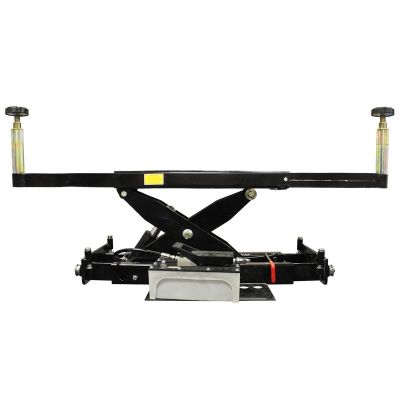

The Atlas® RJ8 air/hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post or scissor lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different sytles and brands of lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.
The Atlas® RJ8 rolling bridge jack comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ8 to raise most pick up and larger trucks that will sit higher than the average passenger car. The RJ8 rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).
IMPORTANT: The Atlas® RJ8 is designed and engineered to operate on “delivered” air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.
Atlas® RJ8A Specifications
- Maximum Capacity 8,000 lb.
- Maximum Width: 56 1/2"
- Minimum Width: 36"
- Maximum Lifting Height (W/ Adapters): 29 5/8"
- Air Requirement 70-115 PSI (External Air Supply Required - NOT INCLUDED)
- Adapter Hieghts: 2 Each 1.5", 2.5", 5"
- Arm Hole/Adapter Peg Size: 1.5"
- Shipping Weight 390 lbs.
Weight | 350.000000 |
---|---|
Brand | Atlas Automotive Equipment |
UPC | 810524029919 |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.1 yr warranty on material and workmanship
