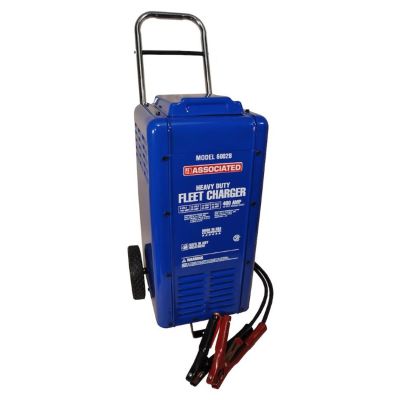

Associated 6002B 6V/12V/18V/24V 100A/80A/50A/40A Heavy Duty Fleet Wheel Battery Charger with 400A Engine Start
Item ID: ASO6002B
Free Item Included
Compare Products
Associated 6002B 6V/12V/18V/24V 100A/80A/50A/40A Heavy Duty Fleet Wheel Battery Charger with 400A Engine Start
Item ID:
ASO6002B
Associated 6002B 6V/12V/18V/24V 100A/80A/50A/40A Heavy Duty Fleet Wheel Battery Charger with 400A Engine Start
Features and Benefits:
- 100/80/50/40 Amp continuous rating
- Vacuum impregnated heavy-duty transformer to seal the unit against external agents
- Multi-diode rectifiers (patented) to take over in case of failure
- Fan cooling mechanism prevents overheating enhancing units life span significantly
- UL and CSA listed with “Safe in Any Weather” operation
- Will not arc or spark
- Patented “Flexi-Spring” cable guards relieve cable stress
- Patented “Stop/Go” light
- Heavy-duty chrome plated handle
- 2-Years Bumper to Bumper Warranty
- Five-Year limited warranty on transformer and rectifier
- MADE IN THE USA
- UL or CSA Continuous Rating: 100/80A
- Crank Assist: 400A
- Operating Charging Voltage: 6/12/18/24V
- Battery Types: SLA
- Indoor/Outdoor Rated: Yes
- DC Cable Length and Gage: 8 Feet 4AWG
- Clamp Rating: 500A
- A/C Cord Length: 10 feet 14-3
- Weight: 70 pounds
- Dimensions: 17.25 X16.5 X 30
The Associated Equipment Model 6002B is a heavy-duty wheeled battery charger designed for fleet and service use. The 6002B is a 6, 12, 18 and 24 volt battery charger with a 400 amp engine crank assist. With 40, 50, 80 and 100 amp charging rates the Associated 6002B fleet charger is more than capable of quickly and effectively charging any battery in your fleet.
Specifications:
| UPC | 099684000390 |
|---|---|
| Weight | 68.250000 |
| Brand | Associated |
| Dimension Width | 14" |
| Charging Cable Clamp Rating | 500A |
| Charging Cable Length | 8' |
| Charging Mode | Timer |
| Certifications | UL/CSA |
| Dimension Height | 26" |
| Dimension Width | 16" |
| 12 Volt Boost Rating in AMPS | 725 AMP |
| 12 Volt Charging AMP Rate High | 80 AMP |
| 24 Volt Charging AMP Rate High | 40 AMP |
| 6 Volt Charging AMP Rate High | 100 AMP |
| Charger Style | WHEEL |
| Charging Cable GAUGE | 4_AWG |
| Compatible AGM | Not for AGM use |
| Compatible Conventional-(Lead Acid) | Lead Acid compatible |
| Compatible Deep Cycle | Not for Deep Cell use |
| Compatible Gel Cell | Not for Gell cell use |
| Compatible Maintenance Free(Sealed) | Not for Maintenance Free Use |
| Compatible Marine | Non Marine Use |
| Discharging Mode | No Discharge Mode |
| Outdoor Approval | Outdoor approved |
| Item | Battery Charger |
Warranty Info:
Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.2 yr warranty on material and workmanship
