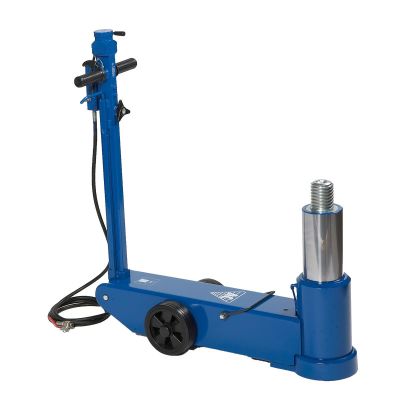

AME Air Hydraulic Jack 65 Ton

Item ID: AMN65-1AP
Free Item Included

AME Air Hydraulic Jack 65 Ton

Item ID:
AMN65-1AP
As low as
$1.00
AME Air Hydraulic Jack 65 Ton

Features and benefits:

  • Compact and slim design for easy operation and maneuverability.
  • Telescopic handle increases the reach under the aircraft to 85.43 in and offers easy and safe operation.
  • The jack can be operated by either compressed-air, nitrogen from the aircraft wheels or a mobile nitrogen service cart.
  • Fitted with extension screw (3.15 in) for optimum use of the stroke.
  • Rapid ram retraction without load.
  • Safety features include manual lowering valve, safety overload valve and dead man’s release.
  • Designed and manufactured according to the aircraft standards: EN1915:2001 and EN12312:2005.

Capacity: 143,000 lbs
Min Height: 10.59 inches
Max Height: 16.97 inches
Frame Length: 31.89 inches
Handle Length: 37.40-53.54 inches
Width: 7.87 inches
Width (with wheels): 12.20 inches
Air Supply: 130-174 psi
Air Consumption: 350 I/min
Weight: 187 lbs

Full Specifications
Weight 0.000000
Brand AME

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
