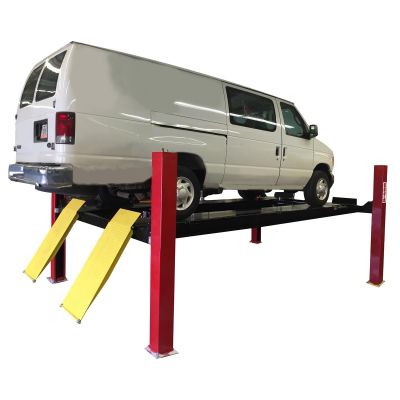

COATS Company, LLC. 15K 4 Post Algnment Lift

Item ID: AMM8K4P15SKITP
Free Item Included

COATS Company, LLC. 15K 4 Post Algnment Lift

Item ID:
AMM8K4P15SKITP
As low as
$1.00
COATS Company, LLC. 15K 4 Post Algnment Lift

Features and Benefits:

  • Built to higher quality standard
  • 100% North American madepremium US Bucher 2HP / 1.5kwpower unit.
  • Corrosion resistant protectionsteel components are wheela-brator shot blasted and acidwashed before a "double bake"powder coat finish is applied.
  • Superior structural strengthprovides longer life and moreprecise alignments Nonflex double wall 23" / 584mmwide runways with built in "Z"rail. Heavy duty 10" x 8 3/8" x 1/4"wall / 254mm x 213mm x 6mmwall columns and 3" x 8 1/4" /72mm x 210mm tube traversebeams.
  • Greater flexibility withmore models to chose fromAvailable in two runway lengthswith built in wheel alignment orservice deck. Lift can be orderedin red or blue.
  • Premium options andaccessories can expand thecapabilities and service lifeStainless steel radius platesand rear steer plates, built intire inflation hoses, removablework steps, LED runway lightingand premium long life 5 yearwarranty HD jacking beams
  • Lower maintenance costs Zirk style grease fittings at all 11/2" / 38mm plated hinge pins.Runway under rear slip plates isopen to prevent water and dirtcollecting. Thirty 7/8" / 875mmenclosed plated steel slip plateballs provide better support withminimal maintenance .
  • Extended Life "NonTwist" Cable designMachined steel nickel plated 9" /229mm pulleys with bronze selflubricating bushings. Non spinfatigue resistant 9/16" / 14mmcables are routed on doublestacked pulleys (versus fourstacked) to reduce stress andwear.
  • Low pressure hydraulics provideslonger life 4" ID x 65"/ 102mm ID x 1651mm cylinder ismounted under the runway anduse a premium "Parker" seal andwear ring with chrome platedplunger shaft.
  • Designed foroptimum productivitySingle point control withstainless steel cylinder airreleases engage 12 lockingpositions. Adjustable lockingladders 81" x 2 3/4" x 3/8"2057mm x 70mm x 9.5mm thickallow for accurate levelling.Power unit can be mounted ona front or rear column. Built inrunway compressed air outletsfront and rear.

  • COMPLETE YOUR SHOP WITH COATS EQUIPMENT With a loading capacity of 15,000 lbs., the 15K Four Post Lift offers double wall runways with "Z" rails, built-in radius plate pockets and rear slip plates.

Full Specifications
Weight 5100.000000
Brand COATS Company, LLC.

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

1 yr warranty on material and workmanship
