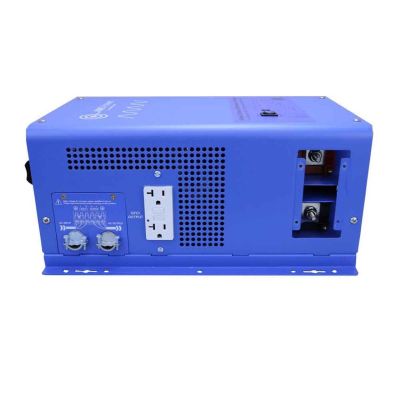

Aims Power 3000 WT Inverter Charger 120VAC 50A Bypass 120Vac & 240Vac

Item ID: AIMPICOGLF3K12050BY
Free Item Included

Proposition 65 Warning for California Consumers

WARNING: cancer and reproductive harm - www.P65Warnings.ca.gov

Aims Power 3000 WT Inverter Charger 120VAC 50A Bypass 120Vac & 240Vac

Item ID:
AIMPICOGLF3K12050BY
As low as
$1.00
Aims Power 3000 WT Inverter Charger 120VAC 50A Bypass 120Vac & 240Vac

Features and Benefits:

  • Listed to UL 458 Standards
  • 2 year warranty
  • 3000 watt low frequency inverter
  • 9000 watt surge for 20 seconds -3x surge capability
  • Bypass 50A at 240VAC or 30A at 120Vac
  • Battery priority selector
  • AC direct connect terminal block
  • GFCI ‐ 20 amps
  • Marine coated and protected
  • Multi stage smart charger 100 amps
  • Remote panel available
  • Auto gen start
  • Auto frequency
  • 10msec typical transfer time
  • 7 battery type settings for charger including LiFePO4 (lithium), check with battery manufacturer for charging specs

  • The ETL listed to UL 458 standards AIMS 3000 watt pure sine inverter charger has surpassed the ETL requirements and includes a 2 year warranty. This inverter is a a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 92%. It bypasses 50A at 240Vac or 30A at 120Vac perfect for RVs and boats connection to shore power. It is packed with unique features and it is one of the most advanced inverter chargers on the market today. It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment.The powerful battery charger is capable of 12 volts at 100 amps, and with power factor corrected, it uses 20-30% less energy from AC input than a standard charger, avoiding nuisance breaker trips or generator overloads. In response to the increasing demand of more advance battery charging, this model is equipped with Batter Temperature Sensing for increased charging precision. The overloads capacity is 300% of continuous output for up to 20 seconds to reliably support tools and equipment longer.The transformers have been consistently improved for years to achieve the best balance of conversion efficiency, idle consumption and minimum THD. The idle consumption of the line is ultra-low, roughly 1.5% of its rated power. The AC battery priority switch and auto generator start functionally making it ideal to work in either backup power or renewable energy applications.In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility.When customized to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required. With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage goes low.

Full Specifications
Weight 58.000000
Brand Aims Power
UPC 840271007120

Warranty Info:

Warranty returns may need to be processed by the manufacturer. View the manufacturer’s warranty policy for more details.

2 yr warranty on material and workmanship w/ POP
